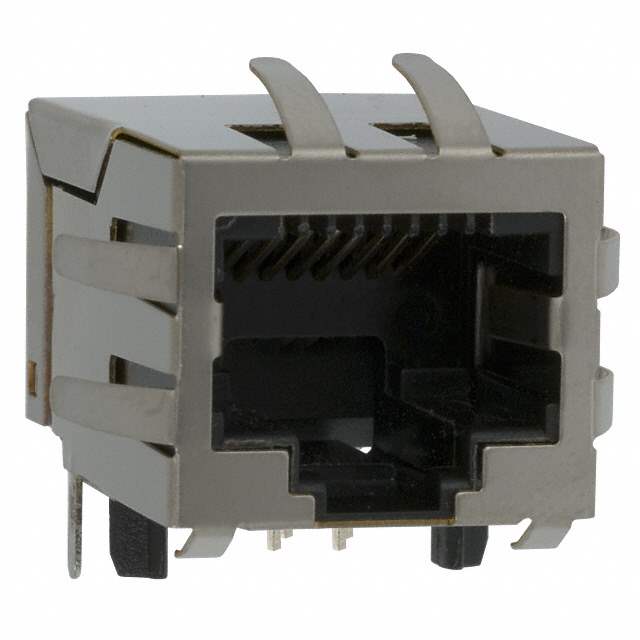

J0011D21NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Pulse Electronics Corporation
Packaging Bulk
Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Features Board Guide
Contact Finish Gold
Temperature Range - Operating 0°C to 70°C
Contact Finish Thickness 15μin (0.38μm)
Shield Material Brass
Housing Material Thermoplastic
Win Source Part Number 205721-J0011D21NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian J0011D21NL CAD Model

Description

The 172916 is a 90° Angle (Right) RJ45 Connector from Pulse Electronics Corporation.

  • Mounting: Through-hole
  • Port: Single
  • Cores per Jack: 4
  • Contact Finish: Gold
  • Thickness: 15μin (0.38μm)
  • Housing Material: Thermoplastic
  • Height Above Board: 0.545" (13.84mm)
  • Feature: Board guide
  • Applications: 10/100 Base-TX and AutoMDIX
  • Status: Active
  • Popularity: Medium
