Same model may have multiple batches, images only for reference.

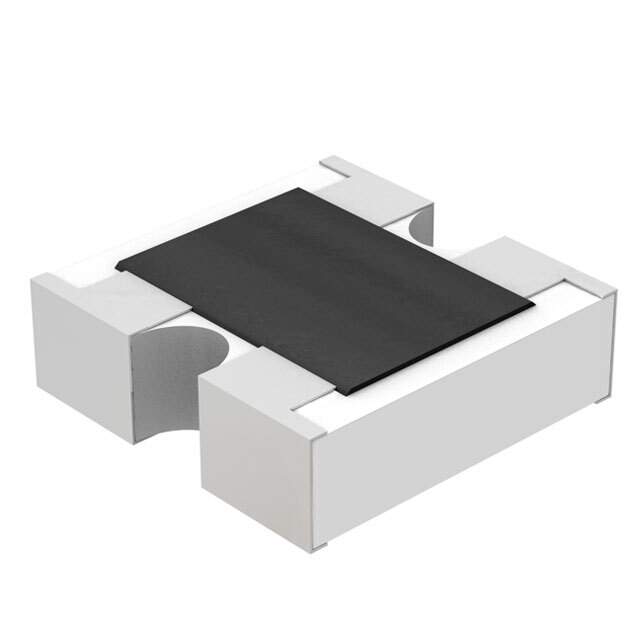

ACASN1001S1001P1AT Real Image
Same model may have multiple batches, images only for reference.

ACASN1001S1001P1AT

Part No ACASN1001S1001P1AT
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES ARRAY 2 RES 1K OHM 0606  /  1k Ohm ±0.1% 125mW Power Per Element Isolated 2 Resistor Network/Array ±25ppm/°C 0606, Convex
Datasheet
ACASN1001S1001P1AT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Vishay Beyschlag/Draloric/BC Components
Series ACA - Precision
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±0.1%
Number of Resistors 2
Resistor Matching Ratio ±0.05%
Resistor-Ratio-Drift ±15ppm/°C
Number of Pins 4
Power Per Element 125mW
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200, Voltage Divider (TCR Matched)
Mounting SMD (SMT)
Package / Case 0606, Convex
Supplier Device Package 0606
Dimension 0.063" L x 0.059" W (1.60mm x 1.50mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0020
Other Names 749-1042-2,749-1042-1,749-1042-6,ACASN1001S1001P1AT-ND
Standard Package 1,000
Win Source Part Number 963764-ACASN1001S1001P1AT
Ultra Librarian 3D Model Ultra Librarian ACASN1001S1001P1AT CAD Model

Description

The Vishay ACA Precision series ACASN1001S1001P1AT is a resistor network array that has a circuit type of isolated and a resistance of 1k ohms.

  • Circuit Type: Isolated
  • Resistance: 1k ohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Temperature Range: -55°C to 155°C
  • Height: 0.022 inches
  • Power per Element: 125mW
