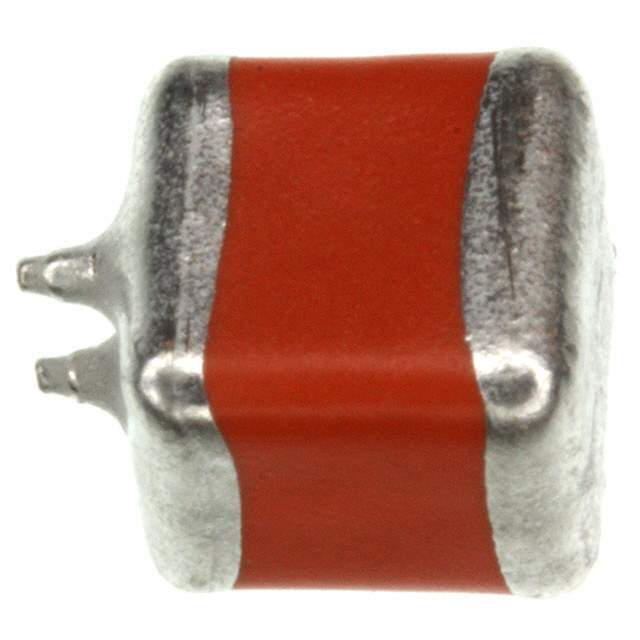

597D226X9063F8T Real Image
Same model may have multiple batches, images only for reference.

597D226X9063F8T

Part No 597D226X9063F8T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 63V 3024 / 22 µF Conformal Coated Tantalum Capacitors 63 V 3024 (7660 Metric) 250mOhm
Datasheet
597D226X9063F8T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, 597D
Package Tape & Reel
Capacitance 22 µF
Tolerance ±10%
Voltage - Rated 63 V
Type Conformal Coated
ESR (Equivalent Series Resistance) 250mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 3024 (7660 Metric)
Dimension 0.299" L x 0.236" W (7.60mm x 6.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Manufacturer Size Code F
Features General Purpose
RoHS Status RoHS non-compliant
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8532.21.0050
Other Names 718-597D226X9063F8TTR,718-597D226X9063F8TDKR,718-597D226X9063F8TCT,597D226X9063F8T-ND
Standard Package 250
Win Source Part Number 1019488-597D226X9063F8T
Ultra Librarian 3D Model Ultra Librarian 597D226X9063F8T CAD Model

Description

The Vishay Sprague TANTAMOUNT® 597D series capacitors are conformal coated tantalum capacitors for general purpose applications.

  • Capacitance: 22 µF
  • Voltage Rating: 63 V
  • Tolerance: ±10%
  • ESR (Equivalent Series Resistance): 250mOhm
  • Operating Temperature Range: -55°C to 125°C
  • Package/Case Size: 3024 (7660 metric)
  • Manufacturer Size Code: F
  • Dimension: 0.299" L x 0.236" W (7.60mm x 6.00mm)
  • MSL Level: 2A (4 Weeks)
