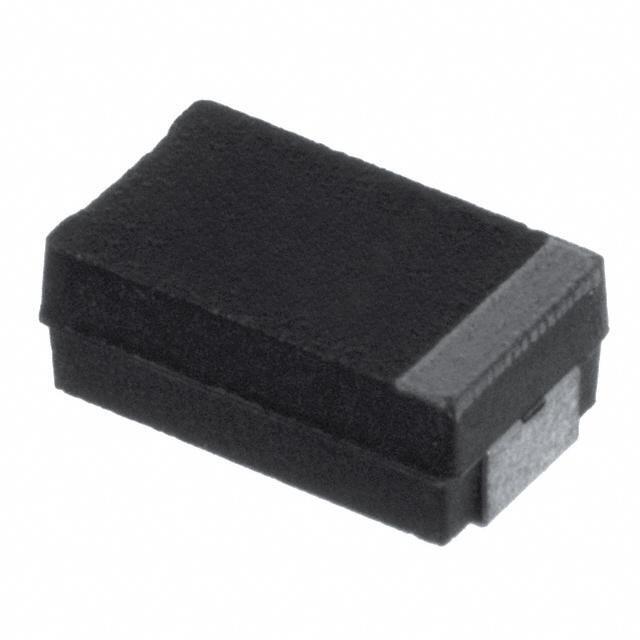

Same model may have multiple batches, images only for reference.

293D476X0016C2TE3

Name: 293D476X0016C2TE3
Brand: Vishay
SKU: 418046
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	293D476X0016C2TE3
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	Cap Tant Solid 47uF 16V C CASE 20% (6 X 3.2 X 2.5mm) Inward L SMD 6032-28 1 Ohm 125°C T/R / CAP TANT 47UF 16V 20% 2312
Datasheet	293D476X0016C2TE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Capacitance	47μF
Tolerance	±20%
Voltage Rating	16V
Type	Molded
ESR	1 Ohm
Temperature Range - Operating	-55°C to 125°C
Mounting	SMD (SMT)
Dimension	0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max)	0.110" (2.79mm)
Manufacturer Size Code	C
Features	General Purpose
Win Source Part Number	1003731-293D476X0016C2TE3
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	293D
Introduction Date	September 25, 2001
ECCN	EAR99
Country of Origin	Israel
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 293D476X0016C2TE3 CAD Model

Alternative Products

Description

The Vishay 293D476X0016C2TE3 capacitor is a molded type with a capacitance of 47μF and a voltage rating of 16V.

Capacitance: 47μF
Voltage Rating: 16V
Type: Molded
Use: General purpose
Tolerance: ±20%
ESR: 1 Ohm
Maximum Height: 0.110 inches or 2.79mm
Mounting: Surface mounted
Dimension: 0.236 inches L x 0.126 inches W or 6.00mm x 3.20mm
Temperature Range: -55°C to 125°C
Family: 293D
Status: Active
Estimated EOL Date: 2028
Popularity: High
Manufacturer: Vishay
Country of Origin: Israel
