Same model may have multiple batches, images only for reference.

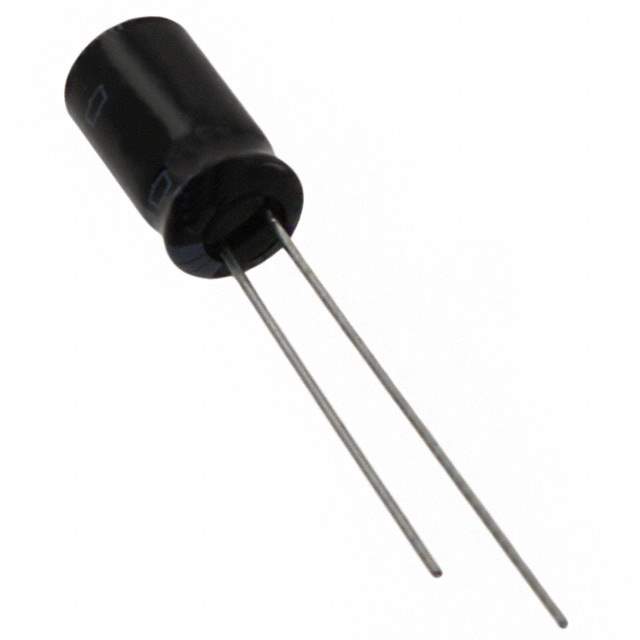

SMG200VB3R3M6X11LL Real Image
Same model may have multiple batches, images only for reference.

SMG200VB3R3M6X11LL

Part No SMG200VB3R3M6X11LL
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description Cap Aluminum Lytic 3.3uF 200V 20% (6.3 X 11mm) Radial 2.5mm 100.455 Ohm 40mA 2000h 85°C Bulk / CAP ALUM 3.3UF 20% 200V RADIAL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series SMG
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 3.3μF
Tolerance ±20%
Voltage Rating DC 200V
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 40mA @ 120Hz
Ripple Current - High Frequency 100mA @ 100kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.433" (11.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 788415-SMG200VB3R3M6X11LL
Popularity Medium
Supply and Demand Status Limited
Family Name SMG
Introduction Date August 23, 2001
ECCN EAR99
Country of Origin China, Indonesia, Japan, Republic of Korea, Taiwan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian SMG200VB3R3M6X11LL CAD Model

Description

The United Chemi-Con SMG200VB3R3M6X11LL is a radial, can-type capacitor from United Chemi-Con that has a capacitance of 3.3μF and a voltage rating DC of 200V.

  • Series: SMG
  • Capacitance: 3.3μF
  • Voltage Rating DC: 200V
  • Tolerance: ±20%
  • Lead Spacing: 0.098" (2.50mm)
  • Operating Temperature: -40°C to 85°C
  • Lifetime: 2000 hours @ 85°C
  • Polarization: Polarized
  • Ripple Current: 40mA @ 120Hz, 100mA @ 100kHz
  • Status: Obsolete (EOL)
  • Alternative Parts: NRWY3R3M200V6.3X11F, NRE-HW3R3M200V6.3X11F, NRE-HW3R3M200V6.3X11YF, 335CKH200M
