Same model may have multiple batches, images only for reference.

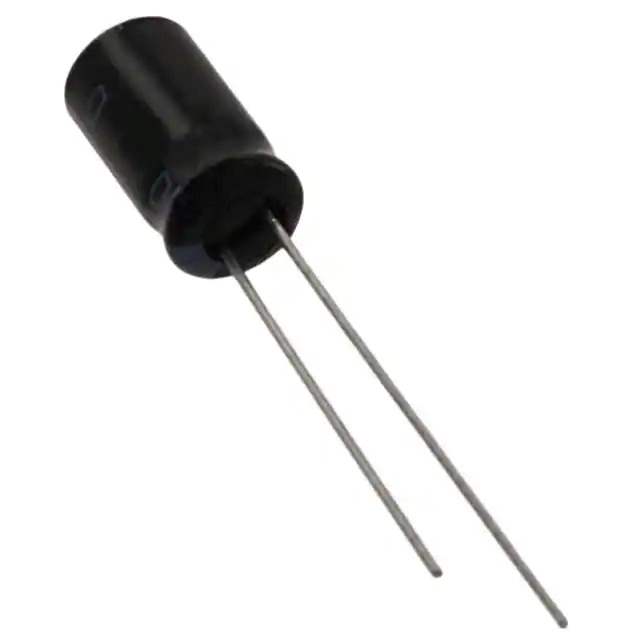

ESMG250ELL101MF11D Real Image
Same model may have multiple batches, images only for reference.

ESMG250ELL101MF11D

Part No ESMG250ELL101MF11D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 25V RADIAL / 100 μF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMG
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 190 mA @ 120 Hz
Ripple Current @ High Frequency 285 mA @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 871235-ESMG250ELL101MF11D
Ultra Librarian 3D Model Ultra Librarian ESMG250ELL101MF11D CAD Model

Description

The ESMG250ELL101MF11D is an aluminum electrolytic capacitor from the SMG series. It is manufactured by United Chemi-Con.

  • Series: SMG
  • Capacitance: 100µF
  • Voltage Rating: 25V
  • Application: General-Purpose
  • Ripple Current: 190mA @ 120Hz, 285mA @ 100kHz
  • Mounting Type: Through-Hole
  • Package: Radial Can
  • Height: 12.50mm
  • Diameter: 6.30mm
  • Product Status: Active
