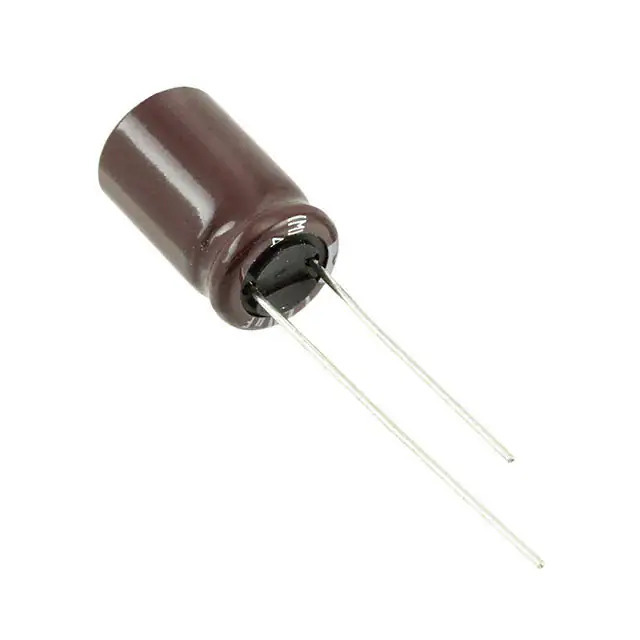

EKZN250ELL681MJ16S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZN250ELL681MJ16S

Part No EKZN250ELL681MJ16S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 25V RADIAL / 680 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZN
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.2 A @ 120 Hz
Ripple Current @ High Frequency 2 A @ 100 kHz
Impedance 38 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357792-EKZN250ELL681MJ16S
Ultra Librarian 3D Model Ultra Librarian EKZN250ELL681MJ16S CAD Model

Description

The 1357792-EKZN250ELL681MJ16S is a general-purpose aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: KZN
  • Capacitance: 680 μF
  • Voltage Rating: 25 V
  • Operating Temperature: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.2 A @ 120 Hz
  • Ripple Current (High Frequency): 2 A @ 100 kHz
  • Lifetime: 10000 hours @ 105°C
  • Package: Radial, can-type
  • Mounting Type: Through hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.394" (10.00mm) in diameter
  • Height: 0.689" (17.50mm)
  • REACH: Unaffected
  • ECCN: EAR99
