Same model may have multiple batches, images only for reference.

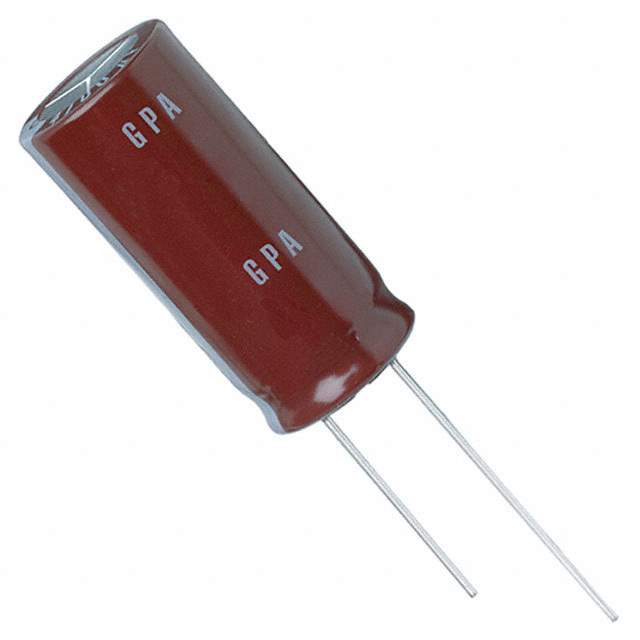

EGPA101ELL751MM40S Real Image
Same model may have multiple batches, images only for reference.

EGPA101ELL751MM40S

Part No EGPA101ELL751MM40S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description Cap Aluminum Lytic 750uF 100V 20% (18 X 40mm) Radial 7.5mm 0.039 Ohm 2880mA 5000h 125C Automotive Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 750 µF
Mounting SMD (SMT)
Case / Package Radial
Diameter 18 mm
ESR (Equivalent Series Resistance) 39 mΩ
Height 40 mm
Height - Seated (Max) 41.5036 mm
Lead Diameter 800 µm
Lead Free Yes
Lead Pitch 7.5 mm
Leakage Current 4 µA
Length 40 mm
Life (Hours) 5000 hours
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 40
Packaging Bulk
REACH SVHC Unknown
Ripple Current 2.88 A
RoHS Compliant
Schedule B 8532220020, 8532220020
Termination Radial
Tolerance 20 %
Voltage 100 V
Voltage Rating 100 V
Voltage Rating (DC) 100 V
Win Source Part Number 1057014-EGPA101ELL751MM40S
Categories Aluminum Capacitors
Manufacturer United Chemi-Con
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EGPA101ELL751MM40S CAD Model

Description

This aluminum capacitor is a bulk packaged radial termination type with a voltage rating of 100 V.

  • Package: Bulk
  • Termination: Radial
  • Voltage Rating: 100 V
  • Length: 40 mm
  • Diameter: 18 mm
  • Capacitance: 750 µF
  • Tolerance: 20%
  • ESR (Equivalent Series Resistance): 39 mΩ
  • Leakage Current: 4 µA
  • Ripple Current: 2.88 A
  • Pins: 40
  • Maximum Operating Temperature: 125 °C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
