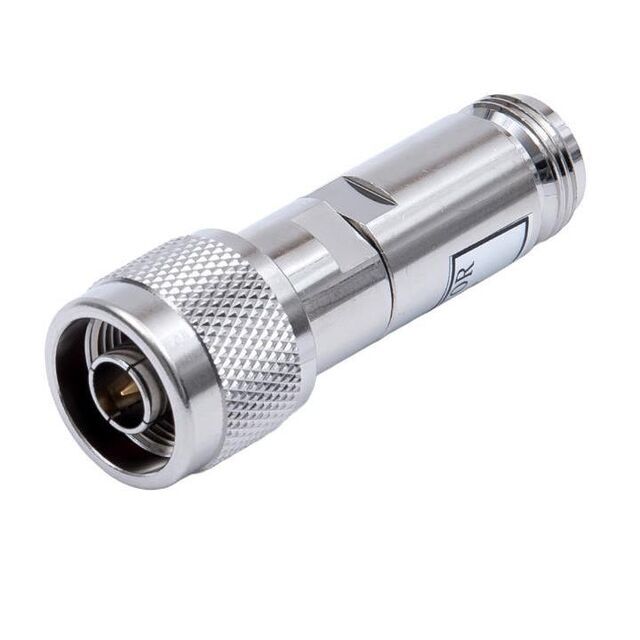

Same model may have multiple batches, images only for reference.

NA-PJ-10

Get a Quote

Part No	NA-PJ-10
Manufacturer	TYCLON
Catalog	Attenuators
Description	RF Attenuators 10dB 0 Hz ~ 4 GHz 50 Ohms 2W N-Type In-Line Module an N Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 4 GHz, and an excellent V.S.W.R 1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz. Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 2W.Attenuation is 10±0.5dB up to 2GHz, 10±1.0dB up to 4GHz.
Datasheet	NA-PJ-10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
