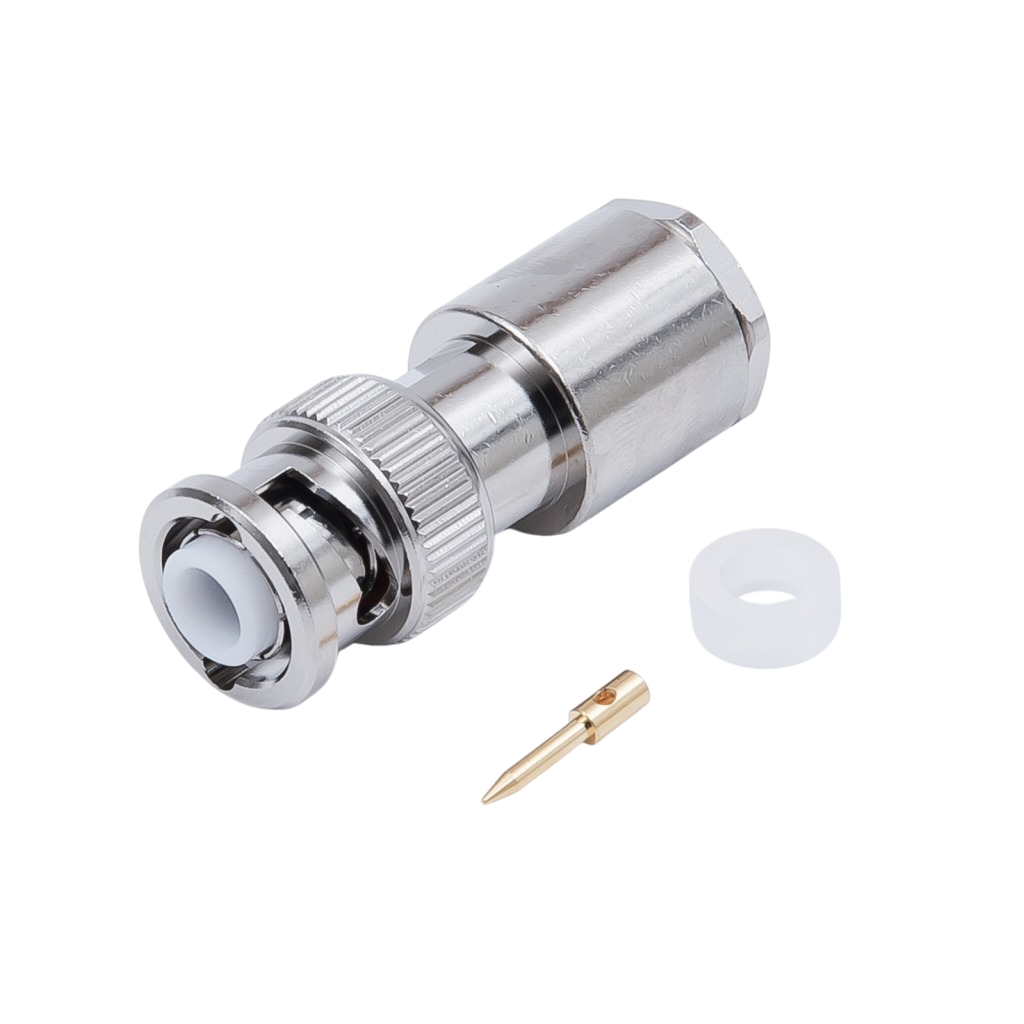

BNC-HV-P-58/U TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BNC-HV-P-58/U

Part No BNC-HV-P-58/U
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description an MHV Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-58/U,RG-58A/U cables. It features a impedance Mismatch, and has a rated voltage of AC 1600V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Tightening.
Datasheet
BNC-HV-P-58/U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Crimp
Shield Termination Clamp
Mounting Type Free Hanging (In-Line)
Cable Group RG-58, 58A
Fastening Type Bayonet Lock
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Ultra Librarian 3D Model Ultra Librarian BNC-HV-P-58/U CAD Model
