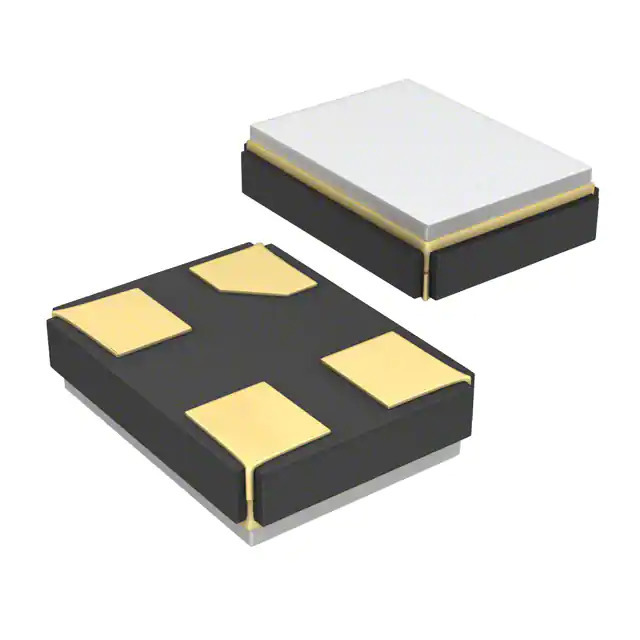

Same model may have multiple batches, images only for reference.
8Z40000017 TXC CORPORATION
Same model may have multiple batches, images only for reference.

8Z40000017

Part No 8Z40000017
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 40.0000MHZ 12PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 8Z
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 40 MHz
Frequency Stability ±15ppm
Frequency Tolerance ±5ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 100°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1366368-8Z40000017
Ultra Librarian 3D Model Ultra Librarian 8Z40000017 CAD Model

Description

The 8Z40000017 crystal is a high-quality electronic component manufactured by TXC CORPORATION.

  • Series: 8Z
  • Frequency: 40 MHz
  • Mounting: Surface Mount
  • Package: 4-SMD, No Lead
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.022" (0.55mm)
  • Operating Temperature: -20°C to 100°C
  • Frequency Stability: ±15ppm
  • Frequency Tolerance: ±5ppm
  • Load Capacitance: 12pF
  • Manufacturer: TXC CORPORATION
