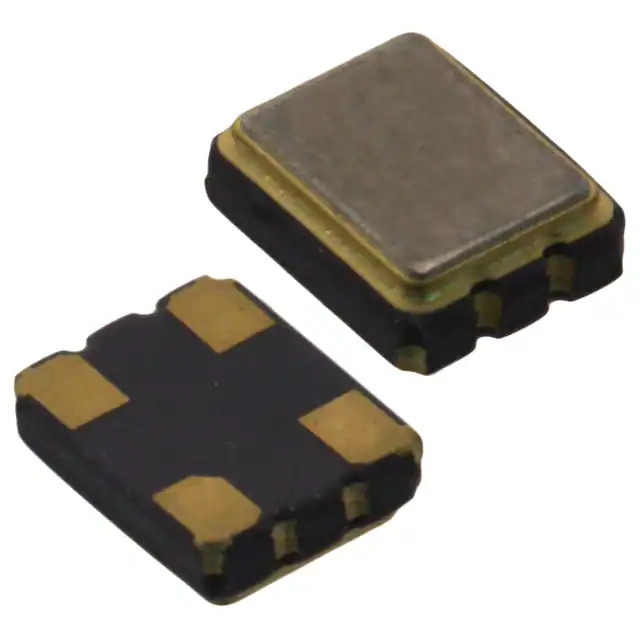

Same model may have multiple batches, images only for reference.
7XZ3200003 TXC CORPORATION
Same model may have multiple batches, images only for reference.

7XZ3200003

Part No 7XZ3200003
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC XO 32.7680KHZ CMOS SMD / 32.768 kHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr TXC CORPORATION
Series 7X
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 32.768 kHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability -
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) -
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Current - Supply (Disable) (Max) -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1353928-7XZ3200003
Ultra Librarian 3D Model Ultra Librarian 7XZ3200003 CAD Model

Description

The TXC CORPORATION 7X oscillator is a high-quality component used in various electronic devices.

  • Type: XO (Standard)
  • Frequency: 32.768 kHz
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Temperature Range: -40°C to 85°C
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.043" (1.10mm)
  • Voltage Supply: 3.3V
  • Function: Enable/Disable
  • Output: CMOS
  • REACH: Unaffected
  • ECCN: EAR99
