Same model may have multiple batches, images only for reference.

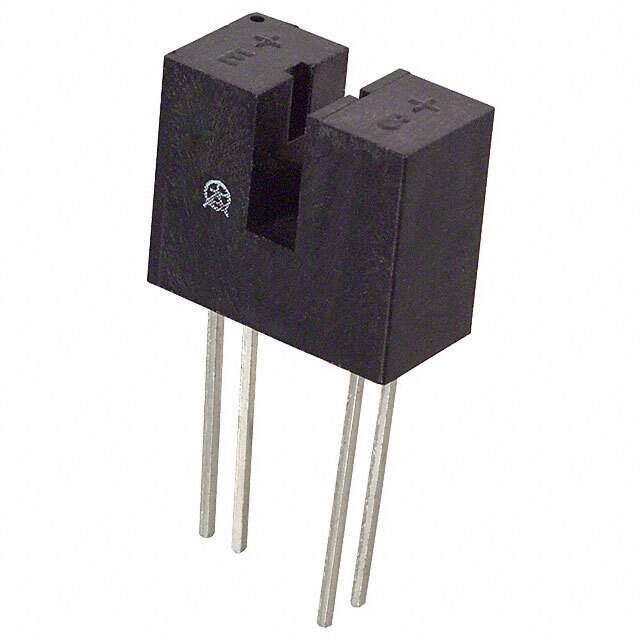

OPB848 Real Image
Same model may have multiple batches, images only for reference.

OPB848

Part No OPB848
Manufacturer TT Electronics
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSOR OPT SLOT PHOTOTRAN PCB MT / Optical Sensor Through-Beam 0.100" (2.54mm) Phototransistor PCB Mount
Datasheet
OPB848 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr TT Electronics/Optek Technology
Package Bulk
Sensing Distance 0.100" (2.54mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Response Time 12µs, 12µs
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case PCB Mount
Type Unamplified
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names 365-1021
Standard Package 100
Win Source Part Number 1203972-OPB848
Ultra Librarian 3D Model Ultra Librarian OPB848 CAD Model

Description

The OPB848 is an optical sensor manufactured by TT Electronics/Optek Technology.

  • Current DC Forward: 50mA
  • Operating Temperature: -40°C to 85°C
  • Output Configuration: Phototransistor
  • Sensing Distance: 0.100" (2.54mm)
  • Sensing Method: Through-Beam
  • Response Time: 12μs
  • Sensor Type: Unamplified
  • Voltage Collector Emitter Breakdown: 30V
