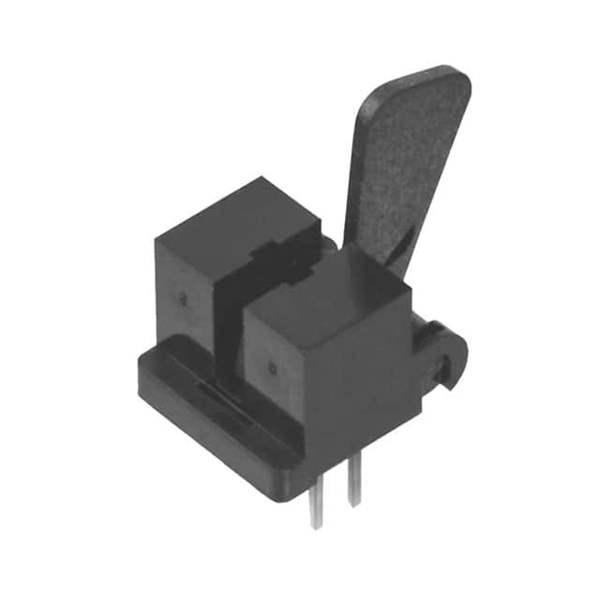

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Logic Output
Mfr TT Electronics
Series Photologic®
Package Bulk
Product Status Obsolete
Sensing Method Optical Flag
Output Configuration NPN - Open Collector, Inverted
Mounting Type Through Hole
Current - Supply 5 mA
Voltage - Supply 4.5V ~ 16V
Response Time 30ns
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case PCB Mount
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 929692-OPB688
Ultra Librarian 3D Model Ultra Librarian OPB688 CAD Model

Description

The 929692-OPB688 is a slot type photointerrupter with a logic output from TT Electronics.

  • Series: Photologic®
  • Response Time: 30ns
  • Current Supply: 5mA
  • Voltage Supply: 4.5V to 16V
  • Output Configuration: NPN - open collector, inverted
  • Sensing Method: optical flag
  • Mounting: through-hole
  • Package: PCB mount
  • Operating Temperature: -40°C to 100°C
  • Status: obsolete
