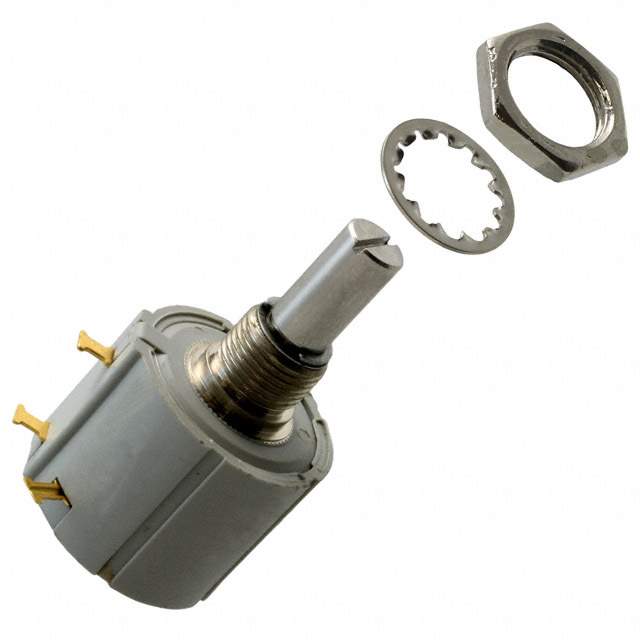

7286R10KL.25 Real Image
Same model may have multiple batches, images only for reference.

7286R10KL.25

Part No 7286R10KL.25
Manufacturer TT Electronics
Catalog Rotary Potentiometers, Rheostats
Description POT 10K OHM 2W WIREWOUND LINEAR / 10k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 2W Solder Turret
Datasheet
7286R10KL.25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Manufacturer TT Electronics/BI
Packaging Bulk
Resistance (Ohms) 10k
Tolerance ±5%
Power (Watts) 2W
Built in Switch None
Number of Turns 10
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient ±20ppm/°C
Rotation 3600°
Resistive Material Wirewound
Termination Style Solder Turret
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.250" (6.35mm)
Bushing Thread 3/8-32
Mounting Panel Mount
Size - Body Round - 0.874" Dia (22.20mm)
Base Product Number 7286R
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.31.0000
Other Part Number 7286R10KL.25LF,987-1525,987-1525-ND,7286R10KL25LF,7286R10KL25,987-1132
Standard Package 10
Win Source Part Number 1325931-7286R10KL.25
Ultra Librarian 3D Model Ultra Librarian 7286R10KL.25 CAD Model

Description

The TT Electronics/BI 7286R10KL.25 is a linear taper rotary potentiometer with a resistance of 10k ohms and a power rating of 2W.

  • Taper: Linear
  • Resistance: 10k ohms
  • Power Rating: 2W
  • Tolerance: ±5%
  • Temperature Coefficient: ±20ppm/°C
  • Actuator Type: Slotted
  • Actuator Length: 0.812 inches (20.63mm)
  • Bushing Thread: 3/8-32
  • Rotation: 3600°
  • REACH: Unaffected
