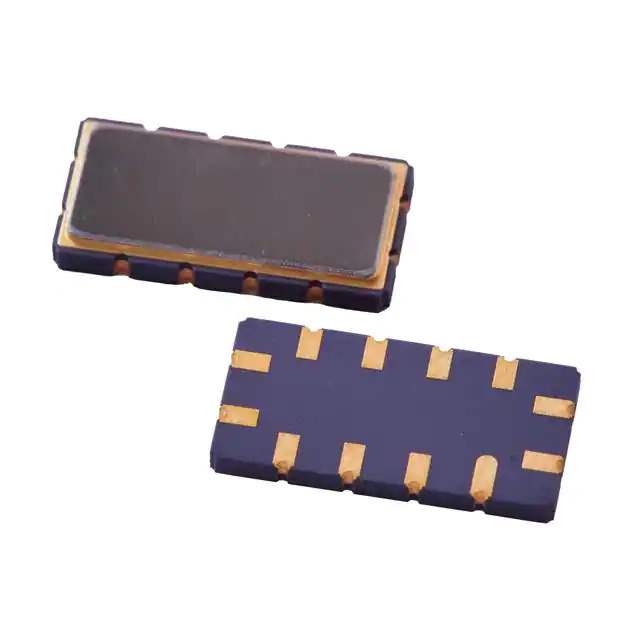

TB0202A Real Image
Same model may have multiple batches, images only for reference.

TB0202A

Part No TB0202A
Manufacturer TST - Tamsan
Catalog SAW Filters
Description SAW FILTER, SM13365-12PAD, 70.00
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr TST - Tamsan
Package Tape & Reel
Product Status Active
Frequency - Center 70MHz
Insertion Loss 16.5dB
Applications General Purpose
Mounting Type Surface Mount
Package / Case 12-SMD, No Lead
Height (Max) 0.071" (1.80mm)
Size / Dimension 0.524" L x 0.256" W (13.30mm x 6.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 681496-TB0202A
Ultra Librarian 3D Model Ultra Librarian TB0202A CAD Model

Description

The 681496-TB0202A is a SAW filter suitable for general-purpose applications manufactured by TAI-SAW TECHNOLOGY CO., LTD.

  • Size: 0.524" L x 0.256" W (13.30mm x 6.50mm)
  • Insertion Loss: 16.5dB
  • Center Frequency: 70MHz
  • Mounting Type: Surface Mount
  • Package: 12-SMD, No Lead
  • Status: Active
