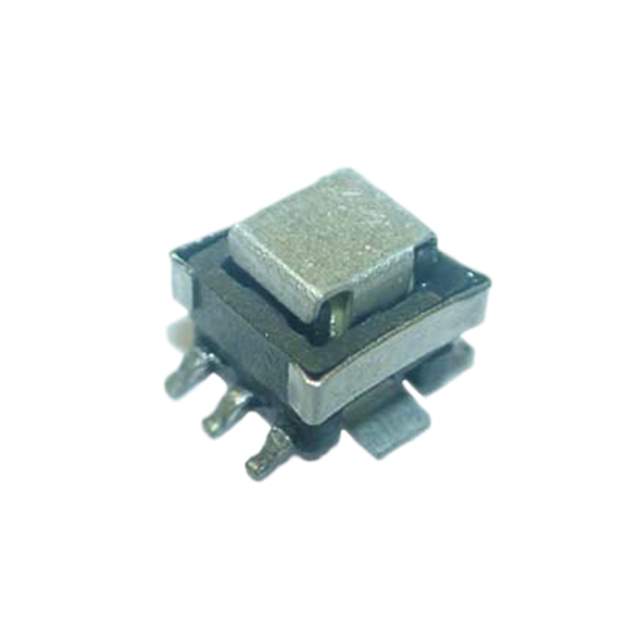

CSE5-101001 Real Image
Same model may have multiple batches, images only for reference.

CSE5-101001

Part No CSE5-101001
Manufacturer Triad Magnetics
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:100 10A SMD / 10 A 1:100 Current Sense Transformer 250kHz Min 5.5Ohm Secondary 2 mH Surface Mount
Datasheet
CSE5-101001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Triad Magnetics
Package Tape & Reel
Frequency Range 250kHz Min
Type Invasive
Current Rating (Amps) 10 A
Inductance 2 mH
DC Resistance (DCR) 5.5Ohm Secondary
Mounting SMD (SMT)
Dimension 0.272" L x 0.303" W (6.90mm x 7.70mm)
Height - Seated (Max) 0.210" (5.33mm)
Termination Style Gull Wing
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 237-2091-6,CSE5-101001-REEL,237-2091-1,237-2091-2,237-2091,237-2091-ND
Standard Package 750
Win Source Part Number 1106825-CSE5-101001
Ultra Librarian 3D Model Ultra Librarian CSE5-101001 CAD Model

Description

The CSE5-101001 is an invasive current sense transformer with a current rating of 10 amps and an inductance of 2 mH from Triad Magnetics.

  • DC Resistance: 5.5 ohms
  • Frequency Range: 250kHz min
  • Package: tape and reel
  • Termination Style: gull wing
  • Dimension: 0.272" L x 0.303" W (6.90mm x 7.70mm)
  • Height: 0.210" (5.33mm)
  • Supply and demand status: limited
  • Alternative part numbers: 237-2091-6, CSE5-101001-REEL, 237-2091-1, 237-2091-2, 237-2091, and 237-2091-ND
