Same model may have multiple batches, images only for reference.

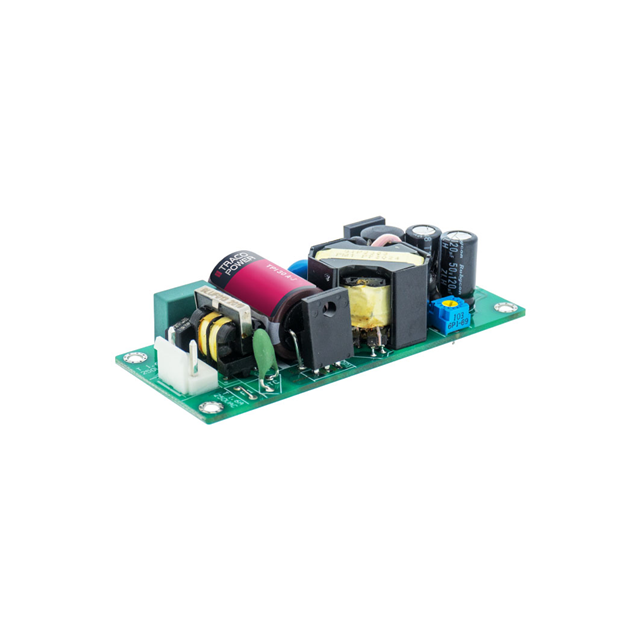

TPI 30-105A-JP Real Image
Same model may have multiple batches, images only for reference.

TPI 30-105A-JP

Part No TPI 30-105A-JP
Manufacturer Traco Power
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 5V 30W  /  Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
TPI 30-105A-JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr Traco Power
Series TPI 30A-J (30W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 5V
Current - Output 1 6 A
Power (Watts) 30W (40W Forced Air)
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 86%
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Dimension 3.34" L x 1.36" W x 0.77" H (84.8mm x 34.5mm x 19.6mm)
Approval Agency CB, CE, cURus
Standard Number 62368-1
Minimum Load Required No
Base Product Number TPI 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1951-TPI30-105A-JP
Standard Package 1
Win Source Part Number 1100843-TPI 30-105A-JP
Ultra Librarian 3D Model Ultra Librarian TPI 30-105A-JP CAD Model

Description

The TPI 30-105A-JP is an AC DC converter with an open frame and a power of 30W (40W forced air) manufactured by Traco Power.

  • Input: Universal input
  • Output: Adjustable output
  • Voltage Isolation: 3 kV
  • Single Output Voltage: 5V
  • Efficiency: 86%
  • Minimum Load: Not required
  • Mounting: Mountable on chassis
  • Package: Box
  • Operating Temperature Range: Between -40°C to 85°C (with derating)
  • Alternative Parts: TPI 30-105A-JP
  • Approvals: CB, CE, and cURus
  • Standard Number: 62368-1
