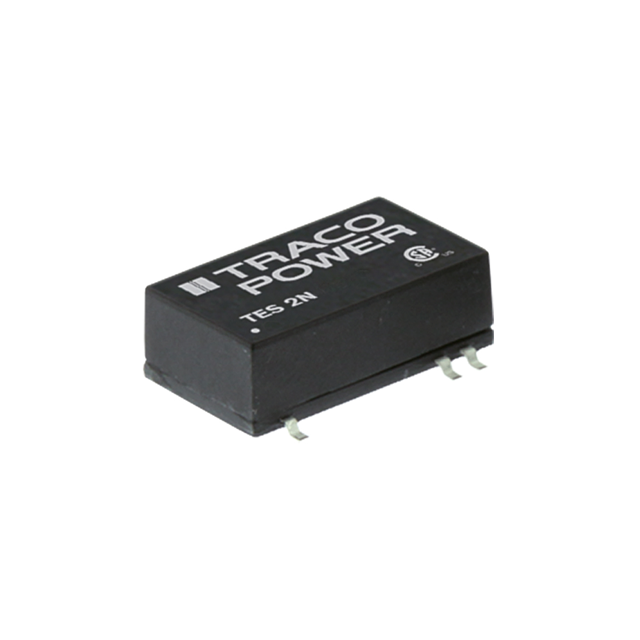

Same model may have multiple batches, images only for reference.

TES 2N-0513

Name: TES 2N-0513
Brand: Traco Power
SKU: 1335867
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TES 2N-0513
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 2W / Isolated Module DC DC Converter 1 Output 15V 135mA 4.5V - 9V Input
Datasheet	TES 2N-0513 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	15V
Current - Output (Max)	135mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	73%
Mounting	Surface Mount
Case / Package	16-SMD Module, 6 Leads
Size / Dimension	0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Base Product Number	TES 2
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2618
Standard Package	10
Win Source Part Number	1335867-TES 2N-0513
Ultra Librarian 3D Model	Ultra Librarian TES 2N-0513 CAD Model

Alternative Products

Description

The TES 2N-0513 is a reliable electronic component from Traco Power used in power supplies - board mount DC DC converters.

Power Output: 2W
Efficiency: 73 percent
Packaging: Tube
Voltage Isolation: 1.5kV
Mounting: Surface Mount
Size Dimension: 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Reliable Component: For use in electronic devices
