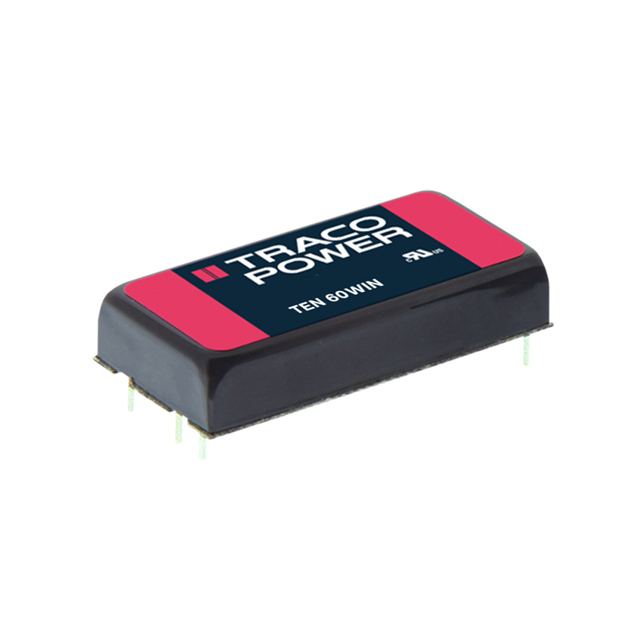

Same model may have multiple batches, images only for reference.

TEN 60-2425WIN

Name: TEN 60-2425WIN
Brand: Traco Power
SKU: 1335830
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 60-2425WIN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-24V 60W / Isolated Module DC DC Converter 2 Output 24V -24V 1.25A, 1.25A 9V - 36V Input
Datasheet	TEN 60-2425WIN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	24V
Voltage - Output 2	-24V
Current - Output (Max)	1.25A, 1.25A
Power (Watts)	60 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	91%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	Module
Base Product Number	TEN 60
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN60-2425WIN,TEN 60-2425WIN-ND
Standard Package	10
Win Source Part Number	1335830-TEN 60-2425WIN
Ultra Librarian 3D Model	Ultra Librarian TEN 60-2425WIN CAD Model

Alternative Products

Description

The TEN 60-2425WIN is a DC DC converter that is used for board mount power supplies.

Package: 6-DIP module
Power Rating: 60W
Outputs: 2
Maximum Current Output: 1.25A each
Input Voltage Range: 9V to 36V
Output Voltage: 24V and -24V
Features: Remote on/off, OCP, OTP, OVP, SCP, UVLO
Efficiency: 91%
Operating Temperature Range: -40°C ~ 85°C (With Derating)
Manufacturer: Traco Power
