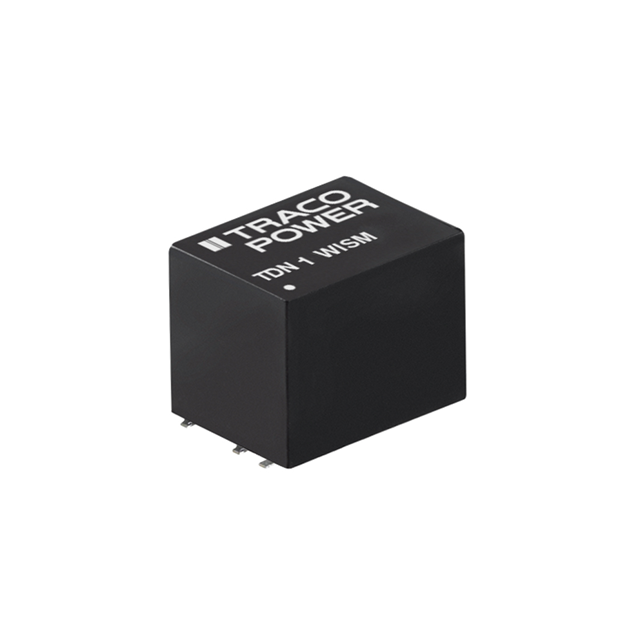

Same model may have multiple batches, images only for reference.

TDN 1-4823WISM

Name: TDN 1-4823WISM
Brand: Traco Power
SKU: 1335413
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TDN 1-4823WISM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 1.1W / Isolated Module DC DC Converter 2 Output 15V -15V 35mA, 35mA 18V - 75V Input
Datasheet	TDN 1-4823WISM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	35mA, 35mA
Power (Watts)	1.1 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 90°C
Efficiency	81%
Mounting	Surface Mount
Case / Package	7-SMD Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number	TDN 1
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN 1-4823WISM-ND,TDN1-4823WISM
Standard Package	10
Win Source Part Number	1335413-TDN 1-4823WISM
Ultra Librarian 3D Model	Ultra Librarian TDN 1-4823WISM CAD Model

Alternative Products

Description

Traco Power brings you the 1335413-TDN 1-4823WISM, a DC-DC converter that provides an output of 15V and -15V.

Power Rating: 1.1W
Efficiency: 81%
Size: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Mounting: Surface Mounted
Remote on/off: Yes
SCP: Yes
Applications: ITE (Commercial)
Voltage Isolation: 1.6kV
Number of Outputs: 2
Current Output: 35mA each
Input Voltage: 18V to 75V
Operating Temperature: -40°C to 90°C
Module: RoHS3 compliant
