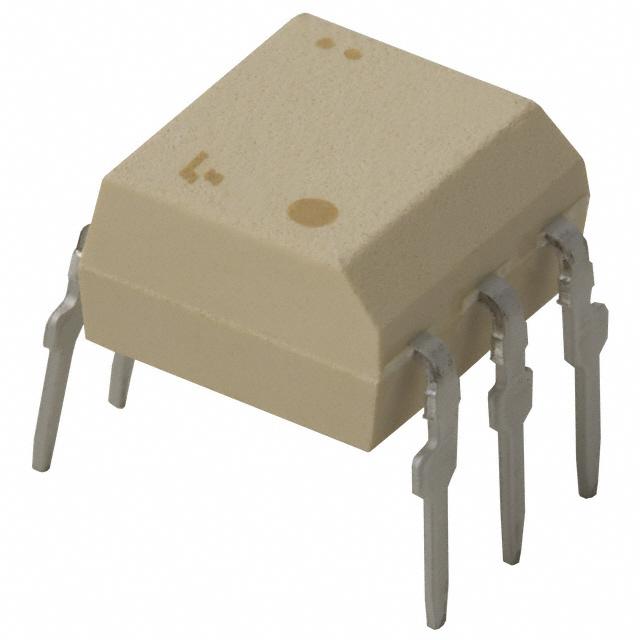

This electronic component is manufactured by Toshiba Semiconductor and Storage and has a Win Source Part Number of 056720-TLP632GB.

• Packaging: It is packaged in a Tube/Rail.
• Mounting: is mounted through hole.
• Output Type: The output type is transistor and the input type is DC.
• Channels: has one channel.
• Forward Voltage: a forward voltage of 1.15V.
• Vce Saturation (Max): a Vce Saturation (Max) of 400mV.
• Isolation Voltage: The isolation voltage is 5000Vrms.
• Category: it falls under the category of isolators.
• Design Status: This product is not for new designs.
• Operating Temperature Range: has an operating temperature range of -55°C to 100°C.
• Package: The case/package is 6-DIP.
• Min DC Current Transfer Ratio: The minimum DC current transfer ratio is 100% @ 5mA.
• Max DC Current Transfer Ratio: a maximum DC current transfer ratio of 600% @ 5mA.
• Switching Turn-On and Turn-Off Time: The switching turn-on and turn-off time is 3μs, 3μs.
• Rise and Fall Time: the rise and fall time is 2μs, 3μs.
• Max Output Voltage: The maximum output voltage is 55V.
• Channel Output Current: the channel output current is 50mA.
• Continuous Forward Current-Max: The continuous forward current-max is 60mA.
• Popularity: Its popularity is medium.
• Risk of Fake Products: there is a low risk of fake products in the open market.
• Status: The supply and demand status for this product is balanced.
