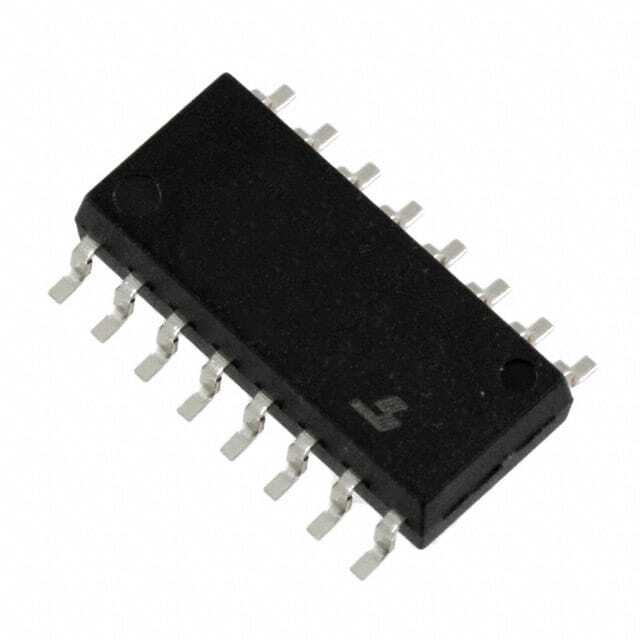

The Optoisolators - Transistor, Photovoltaic Output is a high-performance isolator designed for use in electronic devices.

• Win Source Part Number: 1243455-TLP292-4(V4LATRE
• Category: Isolators
• Series: -
• Package: Tape and reel
• Standard Package: 2,000
• Mounting: SMD (SMT)
• Output Type: Transistor
• Input Type: AC and DC
• Current - DC Forward (If) (Max): 50 mA
• Voltage - Forward (Vf) (Typ): 1.25V
• Rise/Fall Time (Typ): 2μs, 3μs
• Current - Output/Channel: 50mA
• Channels: 4
• Voltage Isolation: 3750Vrms
• Current Transfer Ratio (Min): 50% @ 500μA
• Voltage - Output (Max): 80V
• Vce Saturation (Max): 300mV
• Current Transfer Ratio (Max): 600% @ 500μA
• Turn On/Turn Off Time (Typ): 3μs, 3μs
• Package/Case: 16-SOIC (0.179", 4.55mm Width)
• Supplier Device Package: 16-SO
• Temperature Range: -55°C to 125°C
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• HTSUS: 8541.49.8000
• Manufacturer: Toshiba Semiconductor and Storage
