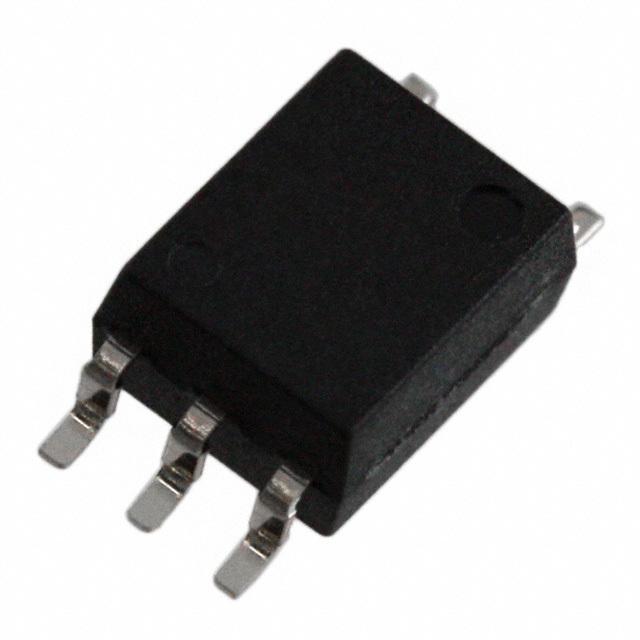

TLP2361(TPL,E Toshiba Semiconductor and Storage TLP2361(TPL,E real image TLP2361(TPL,E label picture TLP2361(TPL,E real image11327 TLP2361(TPL,E real image11328 TLP2361(TPL,E Real Image1 TLP2361(TPL,E Real Image2 TLP2361(TPL,E Real Image3
Same model may have multiple batches, images only for reference.
TLP2361(TPL,E Toshiba Semiconductor and Storage TLP2361(TPL,E real image TLP2361(TPL,E label picture TLP2361(TPL,E real image11327 TLP2361(TPL,E real image11328 TLP2361(TPL,E Real Image1 TLP2361(TPL,E Real Image2 TLP2361(TPL,E Real Image3
TLP2361(TPL,E Toshiba Semiconductor and Storage TLP2361(TPL,E real image TLP2361(TPL,E label picture TLP2361(TPL,E real image11327 TLP2361(TPL,E real image11328 TLP2361(TPL,E Real Image1 TLP2361(TPL,E Real Image2 TLP2361(TPL,E Real Image3
Same model may have multiple batches, images only for reference.

TLP2361(TPL,E

Part No TLP2361(TPL,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV PSH PULL SO6-5
Datasheet
TLP2361(TPL,E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Channel Output Current 10mA
Data Rate 15MBd
Propagation Delay tpLH / tpHL (Max) 80ns, 80ns
Rise and Fall Time 3ns, 3ns
Forward Voltage 1.5V
Continuous forward current- Max 10mA
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 6-SO, 5 Lead
Win Source Part Number 1108881-TLP2361(TPL,E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP2361(TPL,E CAD Model

Description

The TLP2361(TPL,E) is a push-pull/totem pole output optocoupler from Toshiba Semiconductor and Storage.

  • Output Type: push-pull/totem pole
  • Data Rate: 15MBd
  • Isolation Voltage: 3750Vrms
  • Forward Voltage: 1.5V
  • Channel Output Current: 10mA
  • Common Mode Transient Immunity (min): 20kV/μs
  • Propagation Delay tpLH / tpHL (max): 80ns, 80ns
  • Rise and Fall Time: 3ns, 3ns
