Same model may have multiple batches, images only for reference.

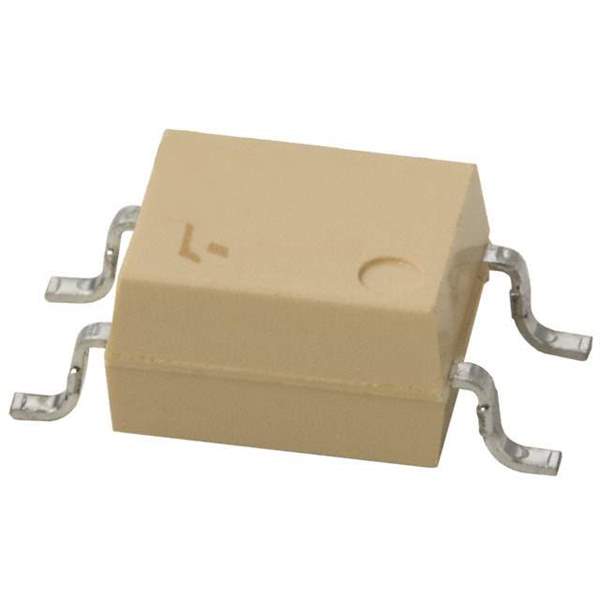

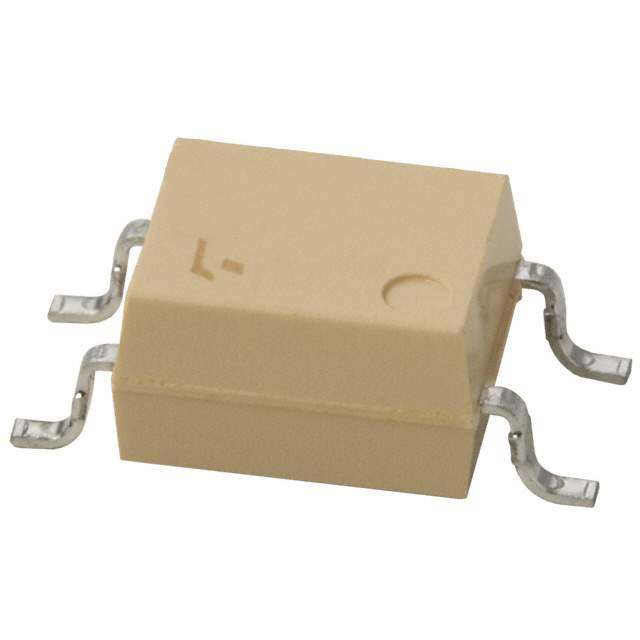

TLP127TPRUF Real Image
Same model may have multiple batches, images only for reference.

TLP127TPRUF

Part No TLP127TPRUF
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 2.5KV DARLNG 6-MFSOP
Datasheet
TLP127TPRUF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 1000% @ 1mA
Switching Turn-On and Turn-Off Time 50μs, 15μs
Rise and Fall Time 40μs, 15μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 300V
Channel Output Current 150mA
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1.2V
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 6-MFSOP, 4 Lead
Win Source Part Number 111840-TLP127TPRUF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLP127TPRUF CAD Model

Description

The Toshiba Semiconductor and Storage TLP127TPRUF is an isolator with a Darlington output type. It has a forward voltage of 1.15V and an isolation voltage of 2500Vrms. The supply and demand status is limited.
