The TD62064AF is a high-voltage, high-current Darlington transistor array manufactured by Toshiba Semiconductor and Storage. This device features four NPN Darlington transistor pairs, which are designed to drive various inductive loads like relays, solenoids, and motors. Each channel is capable of handling up to 1.5A of output current and withstanding voltages up to 50V.

Applications:

• Relay drivers in industrial control systems
• Solenoid drivers in automotive applications
• Stepper motor drivers in robotics
• DC motor drivers
• Lamp drivers
• Logic buffers
• Line drivers for data transmission

Features:

• Four independent Darlington transistor arrays
• High output voltage: 50 V (min)
• High output current: 1.5 A (max) per driver
• Input compatible with TTL and 5V CMOS logic
• Built-in suppression diodes for inductive loads

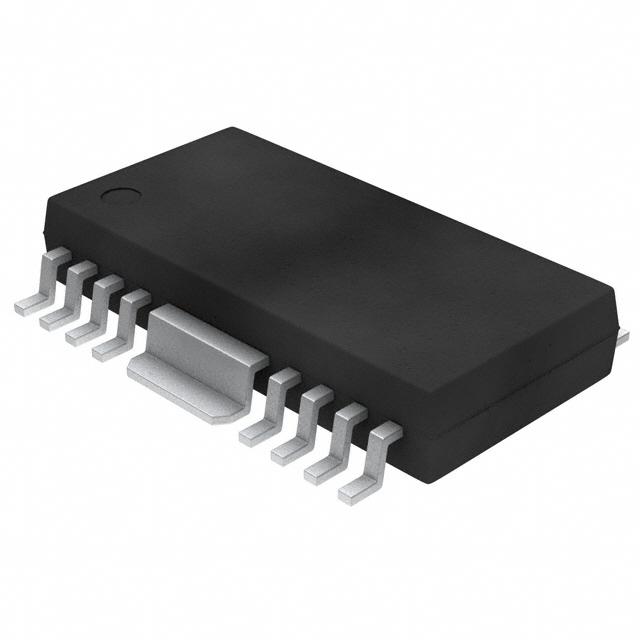

• Package: SOP-16 (Small Outline Package)

Benefits:

• Simplified interfacing between logic circuits and high-power loads
• Reduced component count due to integrated Darlington arrays and suppression diodes
• Enhanced system reliability with built-in protection against inductive kickback
• Easy to use in diverse applications because of TTL/CMOS compatibility
• Space-saving SOP-16 package for compact designs

Additional Details:

The TD62064AF incorporates internal suppression diodes connected between the outputs and the common cathode, providing protection against voltage spikes caused by inductive loads. This eliminates the need for external flyback diodes, simplifying circuit design and reducing component count. The device is directly compatible with TTL and 5V CMOS logic levels, allowing easy interfacing with microcontrollers and digital circuits. The SOP-16 package allows for surface-mount assembly, saving board space and facilitating compact designs. The higher current capability (1.5A) makes it suitable for driving larger loads compared to other TD6200x series devices.

Each Darlington transistor pair consists of two NPN transistors connected in a Darlington configuration, providing high current gain and enabling the device to drive loads requiring significant current. The robust output voltage and current handling capabilities make the TD62064AF well-suited for a wide range of applications involving inductive loads and high-power switching, particularly where higher current drive is required.
