The 1SV325 is a variable capacitance diode, also known as a varactor or varicap, manufactured by Toshiba Semiconductor and Storage. This diode's capacitance varies with the applied reverse voltage, making it suitable for electronic tuning applications in radio frequency (RF) and microwave circuits.

Applications

• Voltage Controlled Oscillators (VCOs): Used to adjust the oscillation frequency in communication equipment.
• Tunable Filters: Implemented in RF filters to electronically adjust the center frequency.
• RF Amplifiers: Employed for impedance matching and tuning in RF amplifiers to optimize performance.
• Frequency Synthesizers: Utilized in synthesizers to generate multiple frequencies with high precision.
• Automatic Frequency Control (AFC) Circuits: Incorporated into receivers to maintain a stable frequency.

Features

• Wide Capacitance Range: Offers a significant change in capacitance with varying reverse voltage.
• High Tuning Ratio: Provides a substantial frequency adjustment range.
• Low Series Resistance: Minimizes signal losses in RF circuits.
• High Q-Factor: Ensures high selectivity and low energy dissipation.
• Compact Package: Enables small and dense circuit designs.

Benefits

• Electronic Tuning: Allows for precise and rapid frequency adjustment without mechanical components.
• Improved Stability: Enhances the stability and accuracy of RF circuits.
• Reduced Size and Weight: Enables smaller and lighter electronic devices.
• Lower Cost: Can reduce system costs by eliminating mechanical components.
• Increased Reliability: Solid-state design provides improved reliability.

Additional Details

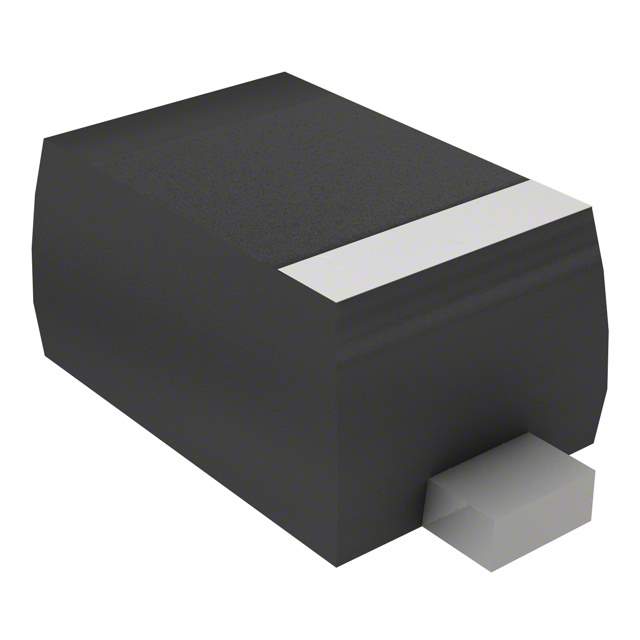

The 1SV325 is typically supplied in a small surface mount package. Detailed specifications, including capacitance range, tuning ratio, and other electrical characteristics, can be found in the product datasheet provided by Toshiba Semiconductor and Storage. Designers should consult the datasheet to ensure the diode meets the specific requirements of their application.
