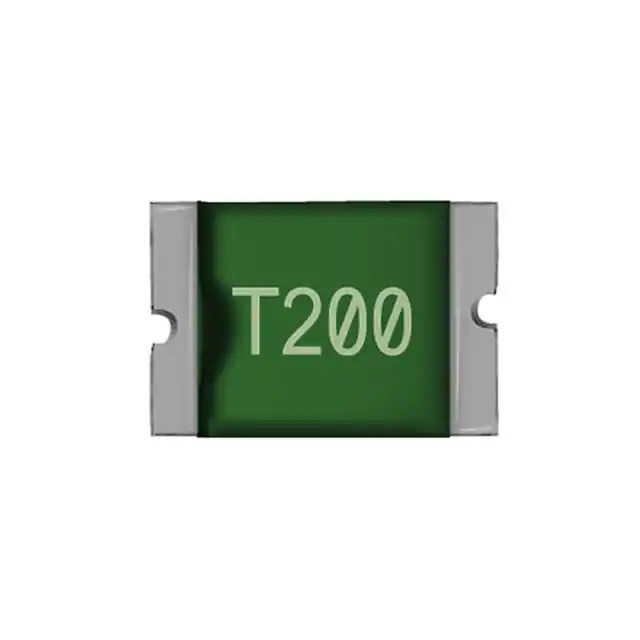

Same model may have multiple batches, images only for reference.

KMC5S075RY

Name: KMC5S075RY
Brand: Thinking Electronic Industrial Co.,Ltd
SKU: 1378747
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	KMC5S075RY
Manufacturer	Thinking Electronic Industrial Co.,Ltd
Catalog	PTC Resettable Fuses
Description	Polymer PTC 0.75A Resettable Fus
Datasheet	KMC5S075RY Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Thinking Electronics Industrial Co.
Series	KMC
Package	Tape & Reel
Product Status	Active
Type	Polymeric
Voltage - Max	16V
Current - Hold (Ih) (Max)	750 mA
Current - Trip (It)	1.5 A
Current - Max	100 A
Time to Trip	200 ms
Resistance - Initial (Ri) (Min)	110 mOhms
Resistance - Post Trip (R1) (Max)	450 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric), Concave
Size / Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max)	-
Thickness (Max)	0.027" (0.68mm)
Lead Spacing	-
Approval Agency	cUL, TUV, UL
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8504.50.4000
Win Source Part Number	1378747-KMC5S075RY
Ultra Librarian 3D Model	Ultra Librarian KMC5S075RY CAD Model

Alternative Products

Description

The KMC5S075RY is a polymeric PTC resettable fuse manufactured by Thinking Electronics Industrial Co.

Application: Circuit protection applications to provide overcurrent protection
Maximum Current Rating: 100A
Maximum Voltage Rating: 16V
Mounting Type: Surface Mount
Package: 1812 (4532 Metric), concave
Temperature Range: -40°C to 85°C
Product Status: Active
Approvals: cUL, TUV, and UL
MSL Level: 1
REACH: Unaffected
Resistance: 110 mOhms
