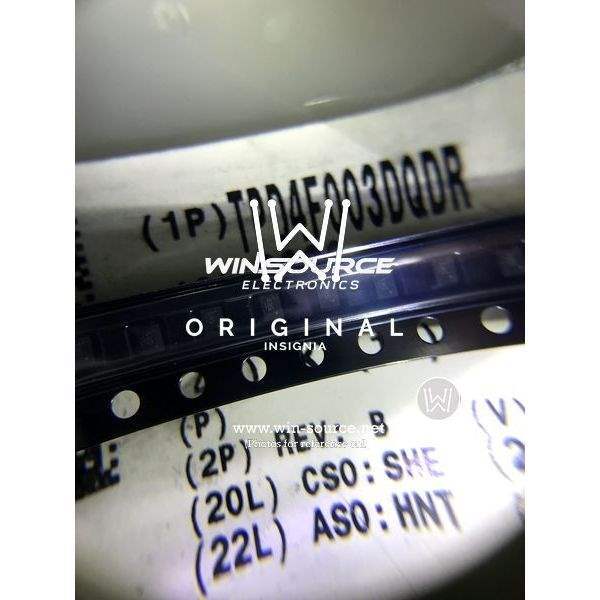

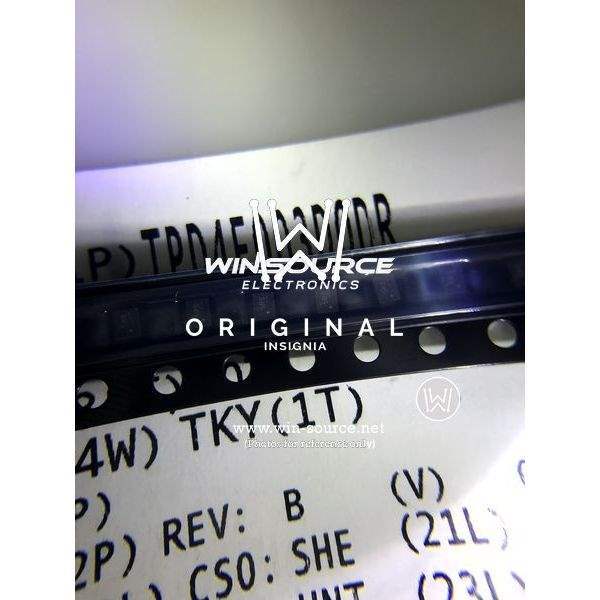

The TPD4F003DQDR from Texas Instruments is a state-of-the-art, quad-channel ESD (Electrostatic Discharge) protection device designed to safeguard high-speed interfaces from potential damage caused by electrostatic discharge events. This compact and efficient solution is housed in a small 8-pin XSON package, making it an ideal choice for space-constrained applications.

Key Features

• Protection for High-Speed Data Lines: The TPD4F003DQDR is capable of protecting up to four high-speed data lines, ensuring that your sensitive equipment is shielded from the harmful effects of ESD.
• Low Capacitance: With low input capacitance, this device is particularly suited for high-speed data interfaces such as USB 2.0, HDMI, and LVDS, maintaining signal integrity without compromising on protection.
• IEC Compatibility: It meets IEC 61000-4-2 (Level 4) ESD protection requirements, providing a robust barrier against common electrostatic threats.
• Low Clamping Voltage: The TPD4F003DQDR offers a low clamping voltage, which is vital for protecting modern electronics that operate at lower voltage levels.
• Wide Operating Range: The device operates over a wide temperature range, ensuring reliable performance across various environmental conditions.

Applications

The TPD4F003DQDR is suited for a broad range of applications, including:

• Mobile Handsets and Accessories
• Portable Electronics
• Computers and Peripherals
• Set-Top Boxes
• Digital Cameras
• MP3 Players

Why Choose TPD4F003DQDR?

Choosing the TPD4F003DQDR for your design ensures that your high-speed interfaces are protected with the latest in ESD protection technology. Its low capacitance and clamping voltage features ensure that your data lines are not only secure but also maintain their high-speed performance. The device's compliance with international standards and its ability to operate across a wide range of temperatures make it a reliable and versatile choice for designers looking to enhance the durability and longevity of their electronic products.
