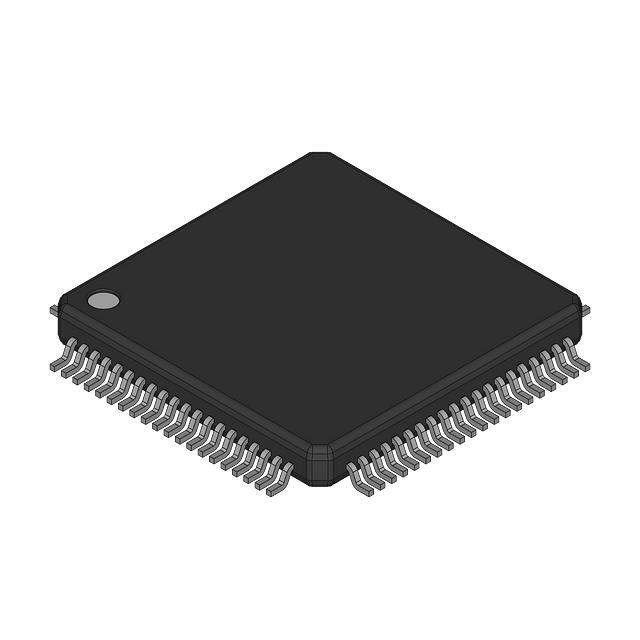

Texas Instruments TMS320F28054MPNQ Microcontroller

The TMS320F28054MPNQ is a high-performance microcontroller unit (MCU) from Texas Instruments, designed for precision control applications. This MCU is part of the TMS320F2805x Piccolo series and is particularly suitable for applications requiring a high level of processing power and real-time performance, such as industrial control systems, automotive control units, power management, and renewable energy systems.

Key Features:

• C28x 32-bit CPU: At the heart of the TMS320F28054MPNQ is a 32-bit CPU with a clock speed of up to 90 MHz, which provides the computational power needed for complex algorithms and control systems.
• Integrated Memory: The MCU comes with 128KB of Flash memory and 20KB of RAM, facilitating efficient program storage and execution.
• Advanced Peripherals: It includes advanced peripherals such as 12-bit Analog-to-Digital Converters (ADCs), multiple PWM outputs, capture inputs, serial communication interfaces (SCI, SPI, I2C, and CAN), and enhanced control peripherals.
• CLA co-processor: The Control Law Accelerator (CLA) is a 32-bit floating-point math accelerator that runs in parallel to the main CPU, optimizing performance for control algorithms.
• Robust Design: With an extended temperature range and designed to meet stringent industrial standards, this MCU ensures reliable operation in harsh environments.
• Energy Efficient: The TMS320F28054MPNQ is designed for low-power operation, helping to reduce energy consumption in embedded systems.
• Tools and Software Support: Texas Instruments provides comprehensive development tools, including Code Composer Studio IDE, controlSUITE software, and a range of development kits to speed up the design process.

Applications:

The versatility of the TMS320F28054MPNQ makes it an excellent choice for a wide range of applications, including:

• Motor Control (AC Induction, Brushless DC, Permanent Magnet Synchronous)
• Power Supplies (DC-DC, AC-DC, Inverters)
• Renewable Energy Systems (Solar Inverters, Wind Turbines)
• Industrial Automation and Robotics
• Automotive Control Systems

With its robust set of features and support for advanced control algorithms, the TMS320F28054MPNQ MCU is a powerful solution that can meet the needs of engineers looking for a dependable and efficient microcontroller for their high-performance applications.
