SN74LVC14ADBRG4 Hex Schmitt-Trigger Inverter by Texas Instruments

The SN74LVC14ADBRG4 is a high-performance, hex inverter chip featuring Schmitt-trigger inputs, designed and manufactured by Texas Instruments (TI). This integrated circuit is part of the 74LVC family, which is characterized by low-voltage operation and compatibility with LVTTL and LVCMOS technologies. The SN74LVC14ADBRG4 is tailored for applications that require high noise immunity and stable output transitions, making it ideal for wave-shaping, signal conditioning, or in systems with slow input transitions.

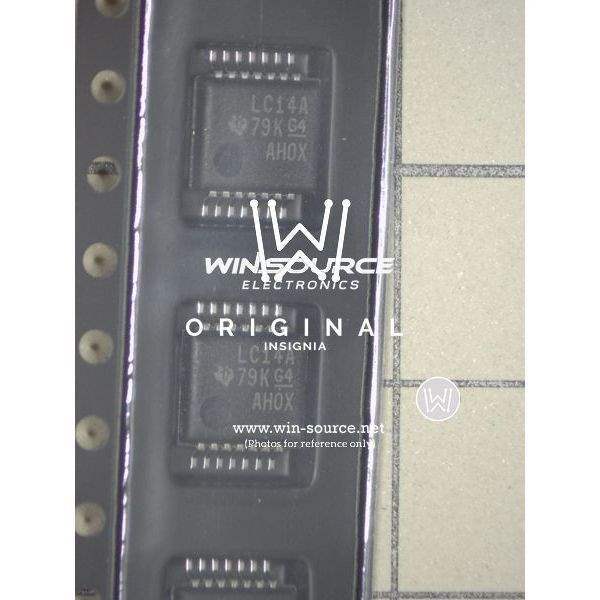

Enclosed in a SSOP (Shrink Small-Outline Package) type DB package, the SN74LVC14ADBRG4 contains six independent inverters with Schmitt-trigger inputs. Each inverter is capable of transforming an irregular or noisy input signal into a well-defined output by utilizing hysteresis. This feature significantly enhances the circuit's tolerance to input-signal variations and helps to stabilize the output, making it less susceptible to glitches and false triggering.

The device operates over a broad V_CC range of 2.7V to 3.6V, providing compatibility with 3.3V logic levels while also offering 5V-tolerant inputs. This flexibility makes the SN74LVC14ADBRG4 a versatile choice for interfacing with various logic families. Additionally, the low-power consumption of this device, along with its high drive capability, allows for efficient operation and robust performance in a wide range of electronic systems.

Key features of the SN74LVC14ADBRG4 include:

• High noise immunity provided by Schmitt-trigger action
• Input voltage level tolerance up to 5.5V, even when V_CC is as low as 2.7V
• Maximum output current of ±24 mA
• Low power consumption, with a typical ICC of 10 μA
• Support for mixed-mode voltage operation on all ports
• ESD protection exceeds JESD 22, ensuring reliability and robustness

The SN74LVC14ADBRG4 is a versatile component that can be utilized in a variety of digital applications, including but not limited to, signal processing, computing, and telecommunications. Its robust design and performance specifications make it a reliable choice for designers looking to build systems with high signal integrity and operational stability.

For detailed specifications and application guidance, it is recommended to consult the official Texas Instruments datasheets and product guides. The SN74LVC14ADBRG4 is available for order through authorized Texas Instruments distributors and is supported by the company's comprehensive technical resources.
