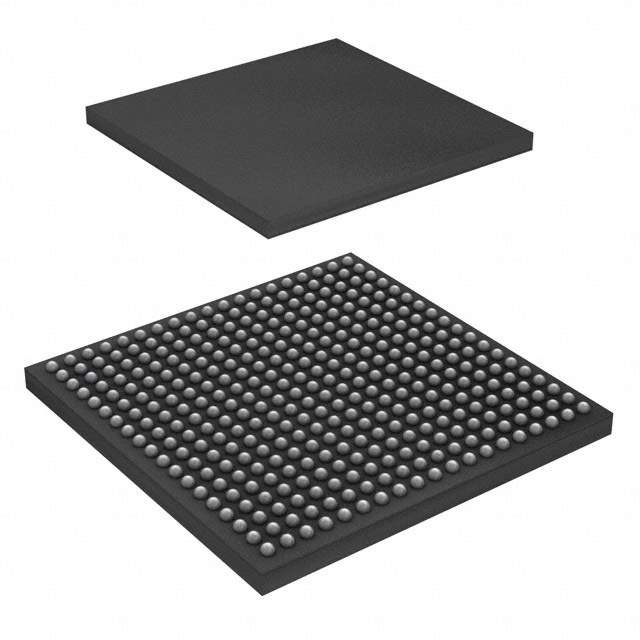

SMOMAPL138BGWTA3R Real Image
Same model may have multiple batches, images only for reference.

SMOMAPL138BGWTA3R

Part No SMOMAPL138BGWTA3R
Manufacturer Texas Instruments
Catalog Embedded - Microprocessors
Description IC MPU OMAP-L1X 375MHZ 361NFBGA
Datasheet
SMOMAPL138BGWTA3R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Core Processor ARM926EJ-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 375MHz
Co-Processors/DSP Signal Processing; C674x, System Control; CP15
RAM Controllers LPDDR, DDR2
Graphics Acceleration No
Display & Interface Controllers LCD
Ethernet 10/100 Mbps (1)
SATA SATA 3Gbps (1)
USB USB 1.1 + PHY (1), USB 2.0 + PHY (1)
Voltage - I/O 1.8V, 3.3V
Temperature Range - Operating -40°C to 105°C (TJ)
Security Features Boot Security, Cryptography
Case / Package 361-NFBGA (16x16)
Additional Interfaces HPI, I2C, McASP, McBSP, MMC/SD, SPI, UART
Win Source Part Number 145007-SMOMAPL138BGWTA3R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SMOMAPL138BGWTA3R CAD Model

Description

The SMOMAPL138BGWTA3R is an advanced microprocessor product from the renowned technological manufacturer, Texas Instruments.

  • Series: OMAP-L1x series
  • Core: ARM926EJ-S RISC MPU up to 456MHz
  • DSP: TMS320C674x VLIW DSP up to 456MHz
  • Connectivity: USB 2.0, MMC/SD/SDIO, UART, SPI, I2C
  • Memory support: 16-/32-bit DDR2/MDDR SDRAM, 16-bit NOR Flash, NAND Flash, 8-/16-bit SRAM
  • Cache: 32KB instruction cache, 32KB data cache
  • RAM: 128KB RAM
  • Boot ROM: 64KB boot ROM
  • Subsystem: Programmable Real-Time Unit Subsystem and Industrial Communication Subsystem (PRU-ICSS)
  • Protocols: EtherCAT, PROFIBUS, PROFINET
