Introducing the PT6304N Series from Texas Instruments

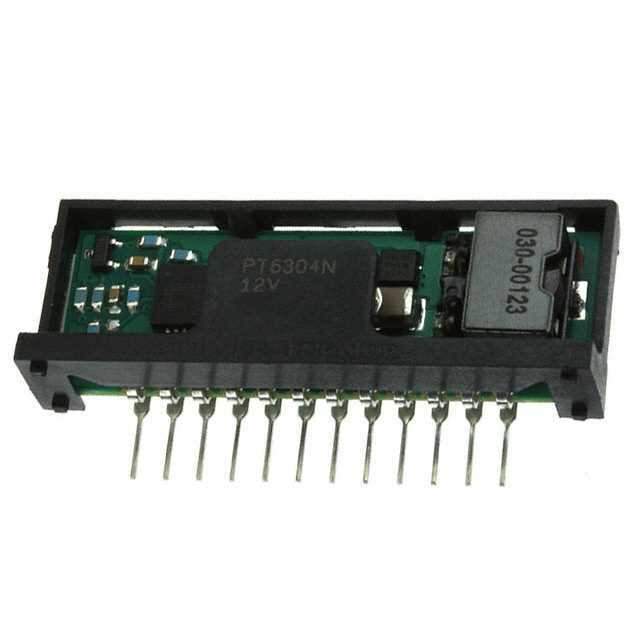

The PT6304N is a high-performance, integrated switching regulator from Texas Instruments, designed to meet the needs of demanding power applications. This series offers a compact, easy-to-use solution for generating a regulated output voltage from a higher input voltage, with the flexibility to accommodate a variety of systems.

Key Features

• Adjustable Output Voltage: The PT6304N provides an adjustable output voltage range, allowing designers to tailor the output to suit specific application requirements.
• High Efficiency: With its integrated switching technology, the PT6304N achieves high efficiency, which minimizes heat generation and improves system reliability.
• Integrated Heat Sink: The device includes a built-in heat sink, which simplifies thermal management and reduces the need for additional cooling components.
• Wide Input Voltage Range: Accommodating a broad range of input voltages, the PT6304N ensures compatibility with various power sources, making it a versatile choice for different environments.
• Power Good Signal: The inclusion of a 'power good' signal provides a simple method for monitoring the regulator's output, offering an extra layer of system protection.

Applications

The PT6304N is suitable for a wide array of applications, including but not limited to:

• Telecommunications equipment
• Industrial systems
• Computing platforms
• Networking hardware

Quality and Reliability

As with all Texas Instruments products, the PT6304N series is manufactured to the highest standards of quality and reliability. Customers can trust in the robust construction and consistent performance of these regulators, even in the most challenging conditions.

Easy Integration

The PT6304N is presented in a compact, easy-to-mount package that simplifies the integration process. Its small footprint and straightforward pin configuration allow for seamless incorporation into existing designs, reducing development time and accelerating time-to-market.

For detailed specifications, application notes, and support resources, visit the Texas Instruments website or contact your local Texas Instruments sales representative.
