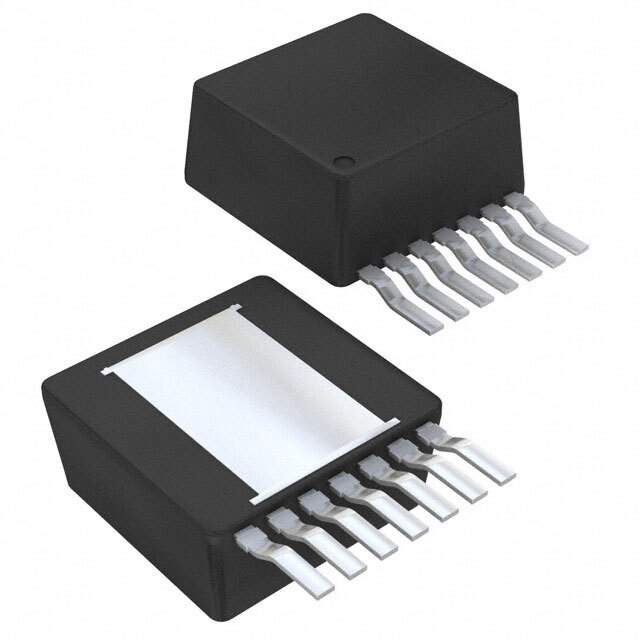

LMZ10504EXTTZE/NOPB Real Image
Same model may have multiple batches, images only for reference.

LMZ10504EXTTZE/NOPB

Part No LMZ10504EXTTZE/NOPB
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC BUCK SYNC ADJ 4A TO-PMOD-7
Datasheet
LMZ10504EXTTZE/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Minimum Input Voltage 2.95V
Maximum Input Voltage 5.5V
Nominal Output Voltage 1 0.8 to 5 V
Current - Output (Max) 4A
Applications ITE (Commercial)
Features UVLO
Temperature Range - Operating -55°C to 125°C
Efficiency 96%
Mounting SMD (SMT)
Dimension 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
Win Source Part Number 206475-LMZ10504EXTTZE
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LMZ10504EXTTZE/NOPB CAD Model

Description

The from Texas Instruments is a high-performance, easy-to-use power module that combines a 5.5V, 4A step-down converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package.

  • Input Voltage Range: 2.95V to 5.5V
  • Continuous Output Current: 4A
  • Output Voltage Adjustability: Down to 0.8V
  • Power Efficiency: Up to 95%
  • Protection Features: Over-temperature, over-current
  • Package: 7mm x 9mm x 1.6mm QFN
  • Temperature Range: -40°C to +125°C
  • Compliance: RoHS
