The DS10CP152EVK/NOPB is a high-performance evaluation kit designed by Texas Instruments to showcase the capabilities of the DS10CP152, a low-power, one-lane LVDS (Low Voltage Differential Signaling) repeater with a high-speed switch. This evaluation kit serves as a robust platform for engineers and designers to explore the functionalities and performance characteristics of the DS10CP152 in various applications such as high-speed data transmission, signal conditioning, and system-level prototyping.

Key Features

• LVDS Repeater: The core of the evaluation kit is the DS10CP152 LVDS repeater, which is capable of running at high data rates up to 3.125 Gbps, making it suitable for high-speed data applications.
• Low Power Consumption: Designed for power-sensitive applications, the DS10CP152 offers low power dissipation which is critical for maintaining thermal efficiency in dense electronic systems.
• Signal Conditioning: The repeater provides excellent signal conditioning, enhancing signal integrity by reducing jitter and compensating for inter-symbol interference (ISI).
• High-Speed Switch: The device includes a high-speed switch that enables channel selection or signal bypass, adding flexibility to system design.
• Plug-and-Play: The DS10CP152EVK/NOPB is designed for easy use, allowing for immediate operation with minimal setup, facilitating quick testing and evaluation.

Applications

The DS10CP152 is ideal for a variety of high-speed signal chain applications, including:

• Telecommunications and Data Communications
• Computer Servers and Networking Equipment
• High-Definition Video Transmission
• Industrial Control Systems
• Automotive Infotainment and Driver Assistance Systems

Package Contents

The DS10CP152EVK/NOPB evaluation kit includes:

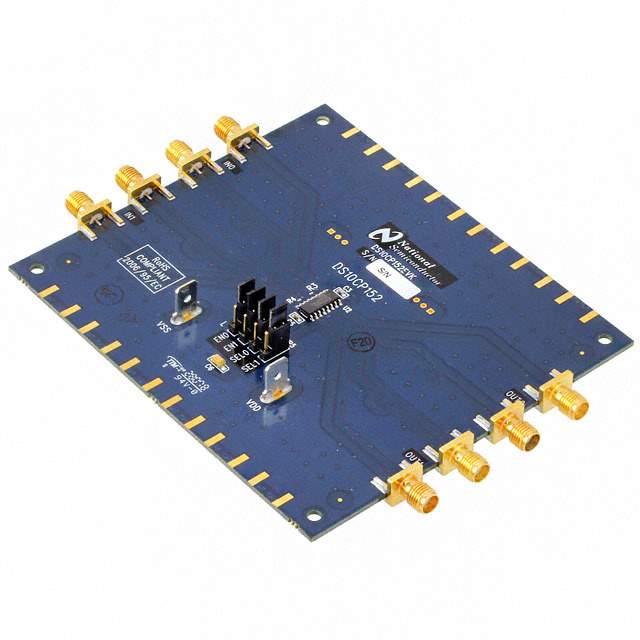

• DS10CP152 Evaluation Board
• User Guide and Documentation

With the DS10CP152EVK/NOPB, Texas Instruments provides a comprehensive evaluation platform that simplifies the development process and accelerates time-to-market for systems requiring high-speed data transmission and signal integrity.
