Introducing the DRV101TG3 from Texas Instruments

The DRV101TG3 is a high-performance, fully integrated PWM (Pulse Width Modulation) current-mode controller designed by the renowned semiconductor company Texas Instruments. This advanced product is engineered to cater to a wide range of power control and drive applications, providing users with a versatile solution for their design needs.

At the heart of the DRV101TG3 lies its ability to efficiently control solenoids, valves, heaters, DC motors, and other high-power switching applications. This is achieved through its robust design, which includes a high output drive capability of up to 2.3A and a wide supply range of 9V to 60V. Such flexibility makes the DRV101TG3 suitable for both industrial and commercial markets, where reliable and precise control is essential.

The device features an adjustable PWM duty cycle ranging from 0% to 100%, allowing for precise control of the power delivered to the load. This adjustability is a critical aspect for applications that require variable speed or power outputs. Moreover, the DRV101TG3 comes with a built-in 0.5-second fixed frequency oscillator, although an external clock can be used for greater flexibility in controlling the PWM frequency.

One of the key advantages of the DRV101TG3 is its thermal shutdown feature, which provides added protection against overheating. When the junction temperature exceeds the thermal shutdown threshold, the output is automatically disabled, thereby safeguarding the device and the system it controls. Once the temperature falls to a safe level, normal operation resumes without the need for any manual intervention.

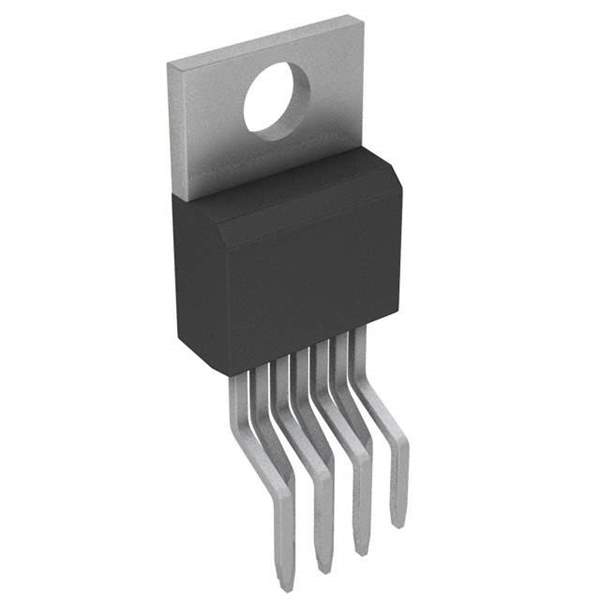

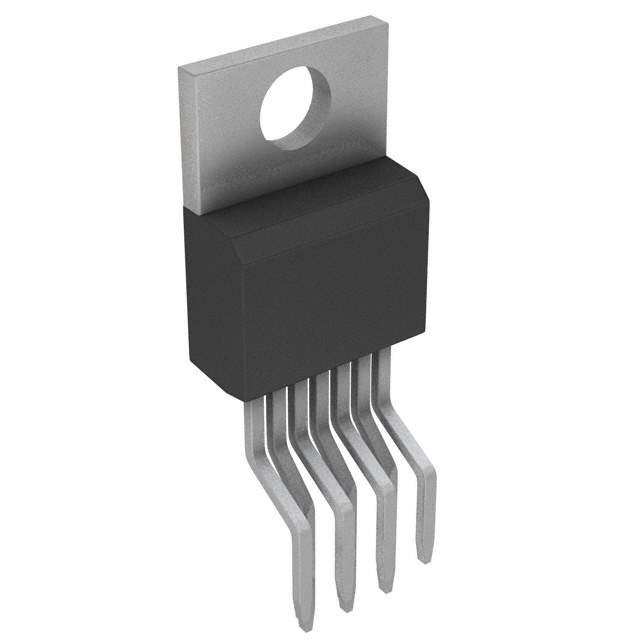

For ease of implementation, the DRV101TG3 is housed in a TO-220 package, which is known for its excellent power dissipation capabilities. This packaging, combined with its simple external circuitry requirements, makes the DRV101TG3 a straightforward and reliable choice for designers looking to integrate PWM control into their systems.

In summary, the DRV101TG3 from Texas Instruments stands out as a high-quality, adaptable, and user-friendly PWM controller. Its broad voltage range, high output drive, and thermal protection make it an ideal choice for a plethora of applications where precise power control is paramount.
