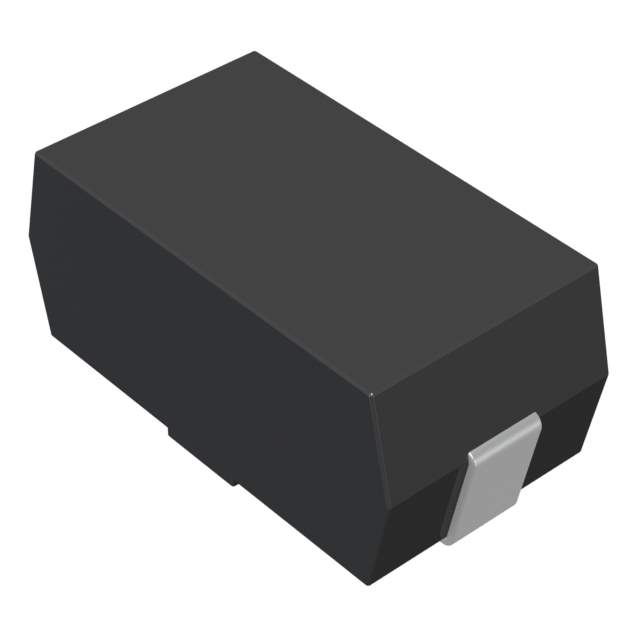

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SP, CGS
Package Tape & Reel (TR)
Resistance 4.7 kOhms
Tolerance ±1%
Power (Watts) 2.5W
Composition Wirewound
Features Current Sense, Moisture Resistant
Temperature Coefficient ±20ppm/°C
Package / Case 4823 J-Lead
Supplier Device Package SMD
Dimension 0.478" L x 0.230" W (12.14mm x 5.84mm)
Height - Seated (Max) 0.210" (5.33mm)
Number of Terminations 2
Base Product Number SP2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Other Names 1624306-1,1624306-1-ND
Standard Package 500
Win Source Part Number 1095446-SP24K7FT
Ultra Librarian 3D Model Ultra Librarian SP24K7FT CAD Model

Description

The SP24K7FT is a chip resistor - surface mount from TE Connectivity Passive Product suitable for use in various electronic devices that require a high-performance resistor.

  • Manufacturer: TE Connectivity Passive Product
  • Resistance: 4.7 kOhms
  • Power: 2.5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
