Same model may have multiple batches, images only for reference.

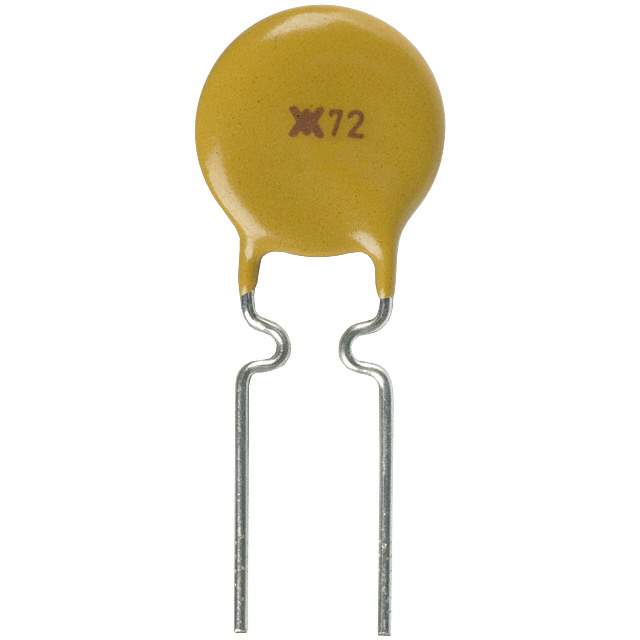

RXEF075-2 Real Image
Same model may have multiple batches, images only for reference.

RXEF075-2

Part No RXEF075-2
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description PolySwitch Resettable Devices
Datasheet
RXEF075-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Current Rating (Max) 40(A)
Packaging Tape and Reel
Operating Temperature Max Deg. C 85C
Voltage Rating Max 72V
Agency Approvals CSA/TUV/UL
Hold Current 0.75(A)
Trip Current 1.5(A)
Initial Resistance (Min) 0.25(Ohm)
Initial Resistance (Max) 0.4(Ohm)
Post Trip Resistance (Max) 0.6(Ohm)
Power Dissipation (Typ) 0.92(NOM) W
Trip Time (Max) [email protected](s)
DELETED Compliant
Power Dissipation 0.92(W)
Win Source Part Number 046512-RXEF075-2
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian RXEF075-2 CAD Model

Description

The TE Connectivity 046512-RXEF075-2 is a high-quality circuit protection device that is designed to protect electronic components from overcurrent.

  • Maximum Current Rating: 40A
  • Maximum Voltage Rating: 72V
  • Operating Temperature Range: up to 85C
  • Power Dissipation: 0.92W
  • Hold Current: 0.75A
  • Agency Approvals: CSA/TUV/UL
  • Trip Current: 1.5A
  • Initial Resistance: 0.25 Ohm
  • Post-Trip Resistance: 0.6 Ohm
  • Trip Time: [email protected](s)
  • Initial Resistance: 0.4 Ohm
  • Packaging: Tape and Reel
  • Pieces per Package: 3,000
