Same model may have multiple batches, images only for reference.

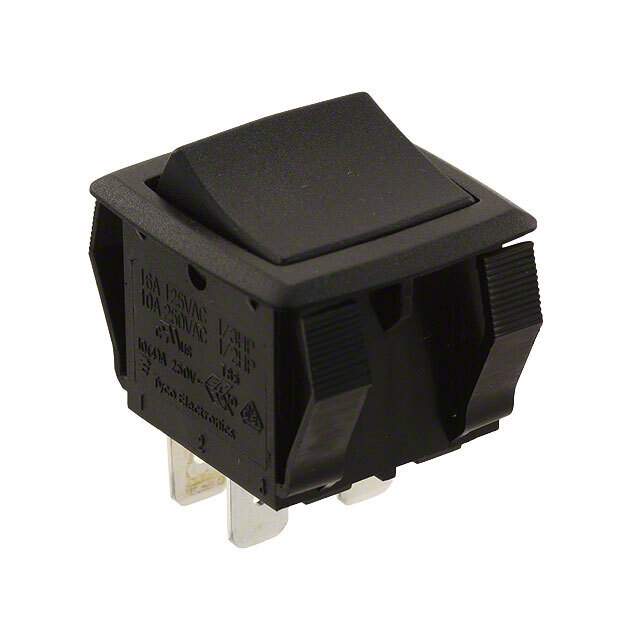

PRDDA1-16F-BB000 Real Image
Same model may have multiple batches, images only for reference.

PRDDA1-16F-BB000

Part No PRDDA1-16F-BB000
Manufacturer TE Connectivity
Catalog Rocker Switches
Description SWITCH ROCKER DPST 16A 125V
Datasheet
PRDDA1-16F-BB000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Bulk
Status Active
Circuit DPST
Switch Function On-Off
Current Rating 16A (AC)
Voltage Rating - AC 125V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Mounting Panel Mount, Snap-In
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Rectangular - 27.60mm x 25.40mm
Temperature Range - Operating -20°C to 85°C
Mechanical Life 100,000 Cycles
Electrical Life 6,000 Cycles
Win Source Part Number 121293-PRDDA1-16F-BB000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PRDDA1-16F-BB000 CAD Model

Description

The PRDDA1-16F-BB000 is a DPST switch manufactured by TE Connectivity ALCOSWITCH Switches.

  • Supply and Demand: Balanced
  • Voltage Rating: 125V
  • Current Rating: 16A (AC)
  • Termination Style: Quick Connect 0.250" (6.3mm)
  • Applications: Industrial control, communication, and power supply equipment
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 6,000 cycles
  • Panel Cutout Dimensions: Rectangular - 27.60mm x 25.40mm
  • Actuator Type: Concave (curved)
