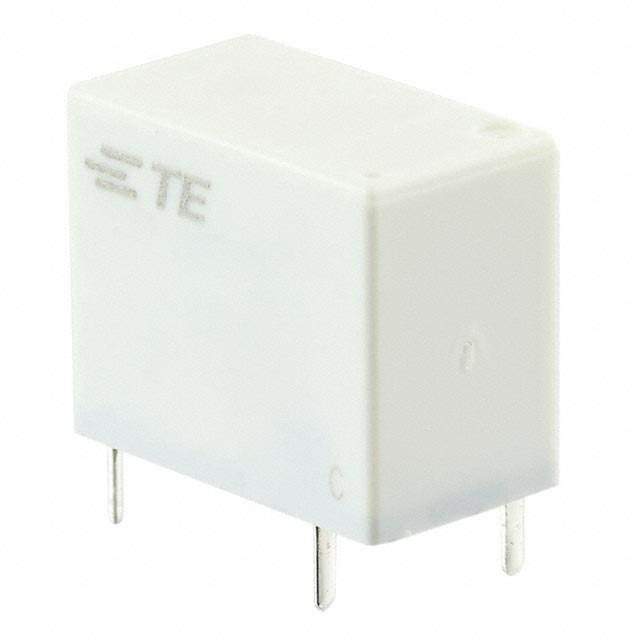

OJ-SS-124HM2 Real Image
Same model may have multiple batches, images only for reference.

OJ-SS-124HM2

Part No OJ-SS-124HM2
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V
Datasheet
OJ-SS-124HM2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 18.8mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 4ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 450 mW
Coil Resistance 1.28 kOhms
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 209405-OJ-SS-124HM2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian OJ-SS-124HM2 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a general-purpose non-latching relay with a contact form of SPST-NO (1 Form A).

  • Coil Voltage: 24VDC
  • Coil Resistance: 1.28 kOhms
  • Coil Current: 18.8mA
  • Switching Voltage: 277VAC and 30VDC maximum
  • Contact Rating: 10A
  • Turn-On Voltage: 16.8 VDC
  • Turn-Off Voltage: 1.2 VDC
  • Temperature Range: -30°C to 85°C
  • Release Time: 4ms
  • Operate Time: 10ms
  • Protection: Sealed with flux protection
  • Mounting: Through-hole
  • Packaging: Bulk packaging
  • Applications: Automotive, industrial, and home appliances
