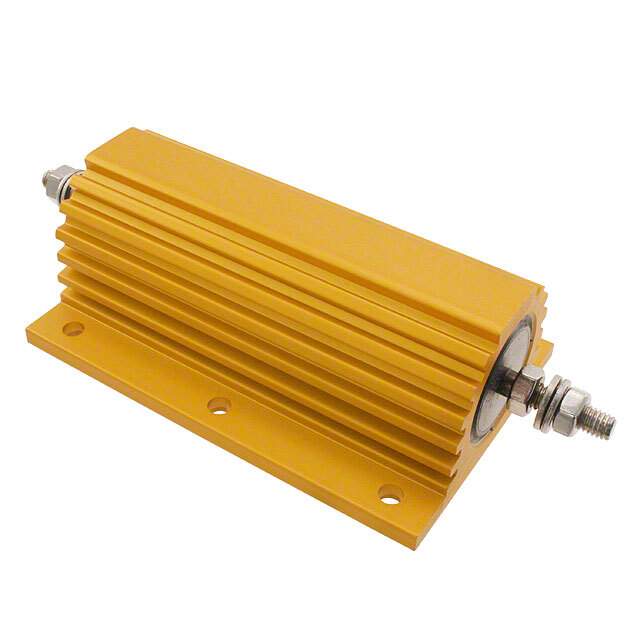

HSC250680RJ Real Image
Same model may have multiple batches, images only for reference.

HSC250680RJ

Part No HSC250680RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 680 OHM 5% 250W / 680 Ohms ±5% 250W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 680 Ohms
Tolerance ±5%
Power (Watts) 250W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 4.291" L x 2.874" W (109.00mm x 73.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Lead Style Terminal Screw Type
Package / Case Axial, Box
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names HSC250680RJ-ND,3-1630024-4,A127602
Standard Package 2
Win Source Part Number 1001570-HSC250680RJ
Ultra Librarian 3D Model Ultra Librarian HSC250680RJ CAD Model

Description

The TM HSC250680RJ is a high-quality resistor that is perfect for a wide range of applications.

  • Category: resistors>chassis mount resistors
  • Package: bulk
  • Height: 1.654 inches when seated
  • Standard Package: two
  • Tolerance: ±5 percent
  • Temperature Coefficient: ±30ppm/°C
  • Lead Style: Terminal screw type
  • Power: 250W
  • Mounting Feature: Flanges mounting feature
  • Composition: Wirewound
  • Resistance: 680 Ohms
  • Coating and Housing Type: Aluminum
  • Package/Case: Axial, box
  • Temperature Range: -55°C to 200°C
  • Dimension: 4.291 inches L x 2.874 inches W
  • MSL Level: Not applicable
  • REACH Status: Unaffected
