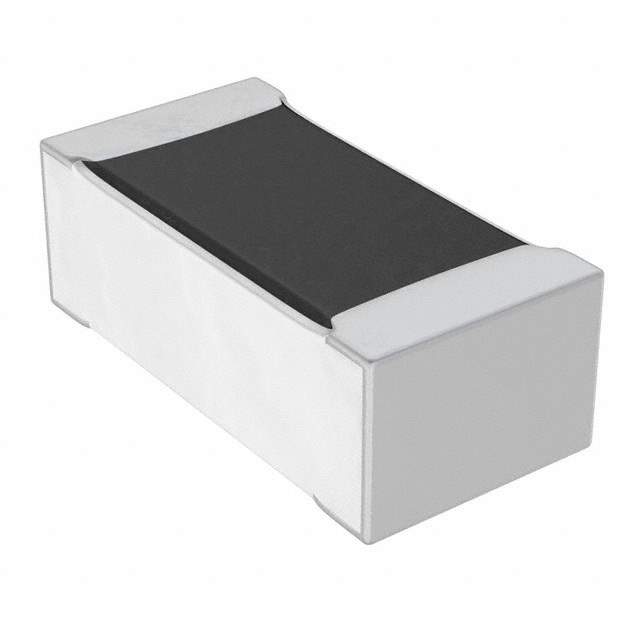

CPF0402B180KE1 Real Image
Same model may have multiple batches, images only for reference.

CPF0402B180KE1

Part No CPF0402B180KE1
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 180K OHM 0.1% 1/16W 0402 / 180 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer TE Connectivity Passive Product
Packaging Reel - TR
Resistance 180 kOhms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.014" (0.35mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number A103794TR,318792164,A103794DKR,3-1879216-4,A103794CT
Standard Package 1,000
Win Source Part Number 1326366-CPF0402B180KE1
Ultra Librarian 3D Model Ultra Librarian CPF0402B180KE1 CAD Model

Description

The TE Connectivity Passive Product chip resistor with part number 1326366-CPF0402B180KE1 is a surface mount electronic component that belongs to the category of resistors.

  • Packaging: reel - TR
  • Size/Dimension: 0.039 inches L x 0.020 inches W (1.00mm x 0.50mm)
  • Height-Seated (Max): 0.014 inches (0.35mm)
  • Standard Package: 1,000
  • Tolerance: +/-0.1 percent
  • Temperature Coefficient: +/-25ppm/degree Celsius
  • Power Rating: 0.063W, 1/16W
  • Composition: thin film
  • Number of Terminations: 2
  • Resistance: 180 kOhms
  • Supplier Device Package: 0402
  • Temperature Range - Operating: between -55 degrees Celsius to 155 degrees Celsius
  • Supply and Demand Status: balanced
