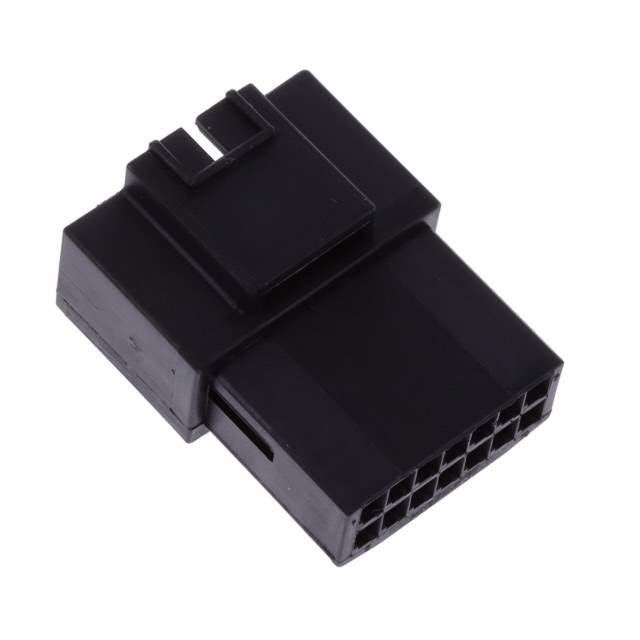

936126-1 Real Image
Same model may have multiple batches, images only for reference.

936126-1

Part No 936126-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT HSG 14POS 2.54MM / 14 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Micro Quadlok
Package Tray
Connector Type Plug
Contact Type Male Pin
Number of Positions 14
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.134" (3.40mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Holder
Color Black
Note Contacts Not Included
Base Product Number 936126
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.6000
Other Names A142550,-936126-1-LSI,-936126-1-SI,-936126-1-CSI
Standard Package 200
Win Source Part Number 1041661-936126-1
Ultra Librarian 3D Model Ultra Librarian 936126-1 CAD Model

Description

The Micro Quadlok plug from TE Connectivity AMP Connectors is a male pin type connector.

  • Positions: 14
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Series: Micro Quadlok
  • Category: Rectangular connectors - housings
  • Row Spacing: 0.134" (3.40mm)
  • Mounting: Surface mountable
  • Package: Tray
  • Supply and Demand: Balance
  • Units per Package: 200
  • HTSUS Code: 8538.90.6000
