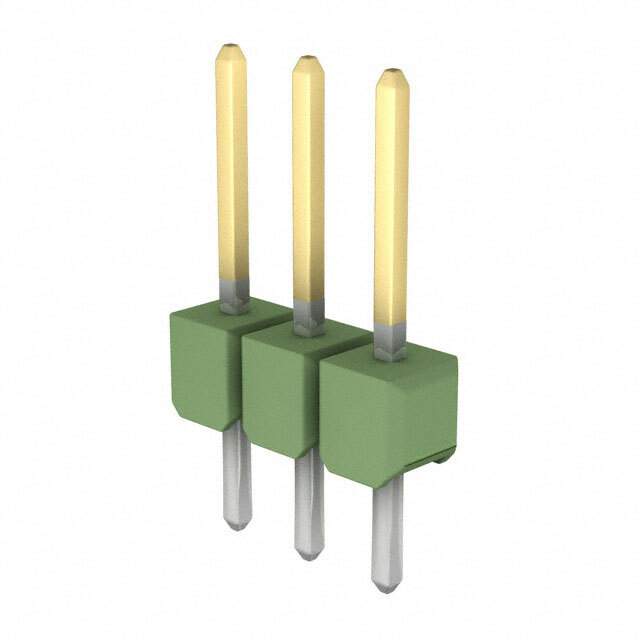

826629-3

Name: 826629-3
Brand: TE Connectivity
SKU: 1332608
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	826629-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.500" (12.70mm)
Insulation Height	0.110" (2.79mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.90µin (0.099µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Green
Current Rating (Amps)	5A
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	826629
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	A121383,826629-3-ND
Standard Package	2,000
Win Source Part Number	1332608-826629-3
Ultra Librarian 3D Model	Ultra Librarian 826629-3 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 826629-3 is a 3-position header, breakaway male pin connector.

Category: connectors, interconnects>rectangular connectors>headers, male pins
Packaging: bulk
Pitch-Mating: 0.100" (2.54mm)
Termination: soldered
Contact Finish-Mating: gold
Contact Finish Thickness-Mating: 3.90µin (0.099µm)
Contact Finish-Post: tin
Contact Finish Thickness-Post: 118.1µin (3.00µm)
Insulation Color: green
Shrouded: unshrouded
Contact Length-Post: 0.126" (3.20mm)
Overall Contact Length: 0.500" (12.70mm)
Insulation Height: 0.110" (2.79mm)
Contact Shape: square
Temperature Range - Operating: -65°C to 105°C
MSL Level: 1 (unlimited)
Current Rating: 5A
HTSUS: 8536.69.4040
