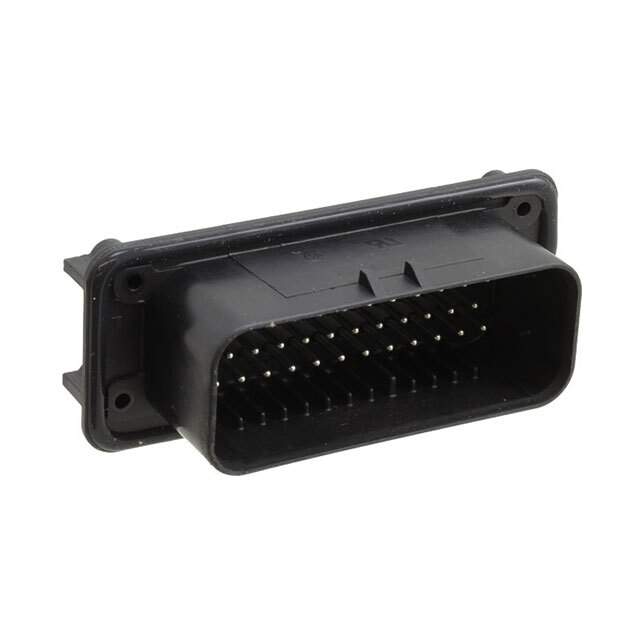

776163-1

Name: 776163-1
Brand: TE Connectivity
SKU: 1012450
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	776163-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 35POS 4MM / Connector Header Panel Mount, Through Hole, Right Angle 35 position 0.157" (4.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPSEAL
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.157" (4.00mm)
Number of Positions	35
Number of Rows	3
Row Spacing - Mating	0.157" (4.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Panel Mount, Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Guide, Sealed
Temperature Range - Operating	-40°C ~ 105°C
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250VAC
Applications	Automotive, Industrial
Base Product Number	776163
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	-776163-1-LSI,7761631,A106460,776163-1-ND,-776163-1-CSI,-776163-1-SI
Standard Package	32
Win Source Part Number	1012450-776163-1
Ultra Librarian 3D Model	Ultra Librarian 776163-1 CAD Model

Alternative Products

Description

The TE Connectivity AMPSEAL 1012450-776163-1 is a 35-position header connector that is used in automotive and industrial applications.

Positions: 35
Shrouding: 4 Walls
Features: Board Guide, Sealing
Contact Type: Male Pin
Positions Loaded: All
Mounting Methods: Panel Mount, Through Hole, Right Angle
Pitch-Mating: 0.157" (4.00mm)
Contact Finish-Mating: Tin
Voltage Rating: 250VAC
Temperature Range: -40°C to 105°C
Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
Insulation Color: Black
