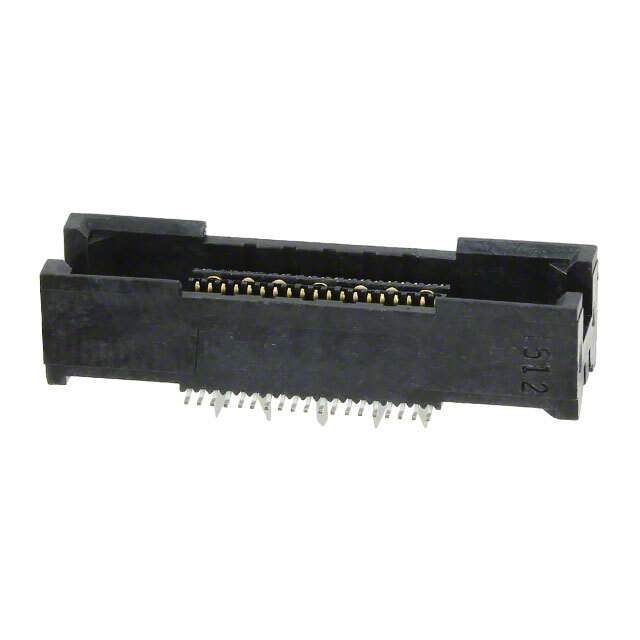

5767054-1 Real Image
Same model may have multiple batches, images only for reference.

5767054-1

Part No 5767054-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 38POS VERT .64MM
Datasheet
5767054-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 38
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Ground Bus (Plane)
Contact Finish Palladium-Nickel
Contact Finish Thickness 5μin (0.127μm)
Mated Stacking Heights 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
Height Above Board 0.236" (6.00mm)
Win Source Part Number 1006168-5767054-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5767054-1 CAD Model

Description

The TE Connectivity AMP Connectors electronic component is a receptacle with center strip contacts that has a medium popularity in the market.

  • Positions: 38
  • Pitch: 0.025" (0.64mm)
  • Win Source Part Number: 1006168-5767054-1
