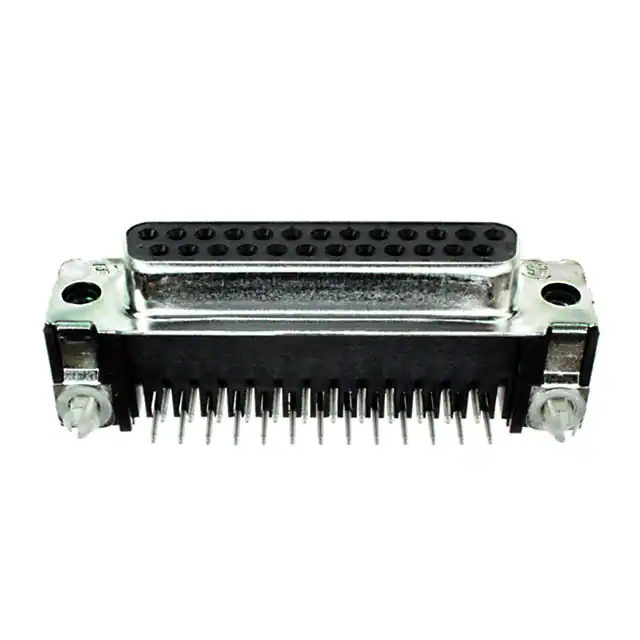

5747846-4 TE Connectivity
Same model may have multiple batches, images only for reference.

5747846-4

Part No 5747846-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS R/A SLDR / 25 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Ground Strap
Voltage Rating 125V
Color Black
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge -
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747846
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365198-5747846-4
Ultra Librarian 3D Model Ultra Librarian 5747846-4 CAD Model

Description

The 1365198-5747846-4 is a D-Sub Connector Assembly from TE Connectivity AMP Connectors.

  • Series: AMPLIMITE HD-20
  • Mounting Type: Through-Hole, Right Angle
  • Current Rating: 6A
  • Voltage Rating: 125V
  • Connector Gender: Receptacle
  • Socket Gender: Female
  • Number of Positions: 25
  • Number of Rows: 2
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Color: Black
  • Flammability Rating: UL94 V-0
  • Housing Material: Thermoplastic
  • Shell Material: Steel with Tin Plated Finish
  • Shell Size: 3 (DB, B)
  • Backset Spacing: 0.318" (8.08mm)
  • Board Lock: Yes
  • Ground Strap: Yes
