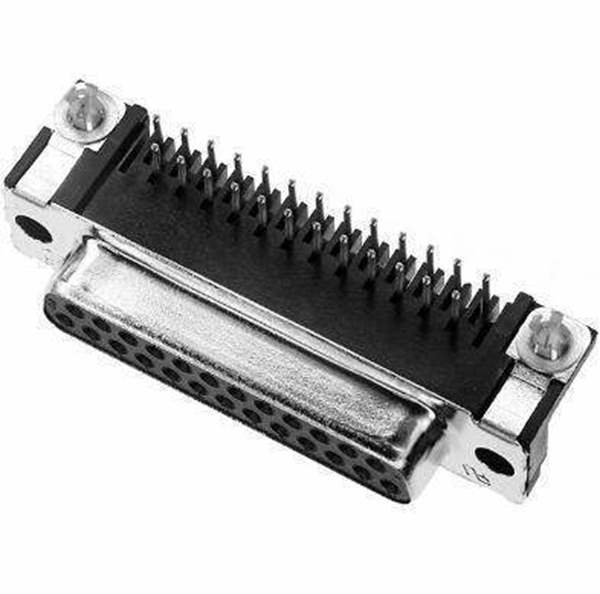

5747846-2 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5747846-2

Part No 5747846-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS R/A SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Product Status Active
Connector Type Receptacle, Female Sockets
Shell Size, Connector Layout 3 (DB, B)
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Backset Spacing 0.318" (8.08mm)
Win Source Part Number WS1209535-5747846-2
Ultra Librarian 3D Model Ultra Librarian 5747846-2 CAD Model

Description

25 Position D-Sub Receptacle, Female Sockets Connector
