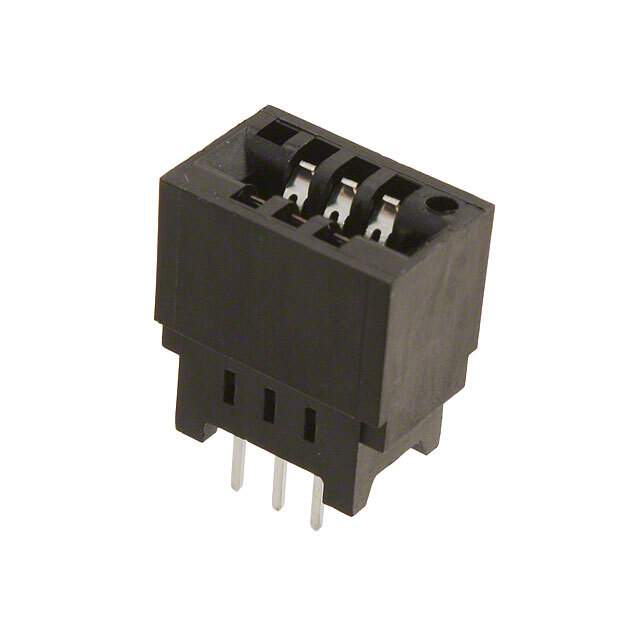

5650263-1 Real Image
Same model may have multiple batches, images only for reference.

5650263-1

Part No 5650263-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FEMALE 6POS 0.100 / 6 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Series Standard Edge II
Package Tube
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 6
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Base Product Number 5650263
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A115474,-5650263-1-SI,5650263-1-ND
Standard Package 37
Win Source Part Number 1199263-5650263-1
Ultra Librarian 3D Model Ultra Librarian 5650263-1 CAD Model

Description

The TE Connectivity AMP Connectors 5650263-1 is a standard edge II card edge connector with 6 positions and a pitch of 0.100" (2.54mm).

  • It has a: black color and is designed for through-hole mounting.
  • The contact material is made of: phosphor bronze with a gold finish and a contact finish thickness of 30.0μin (0.76μm).
  • The temperature range of operation is: -55°C to 85°C.
  • The TE Connectivity AMP Connectors 5650263-1 is ideal for use in: various applications that require a reliable card edge connector.
