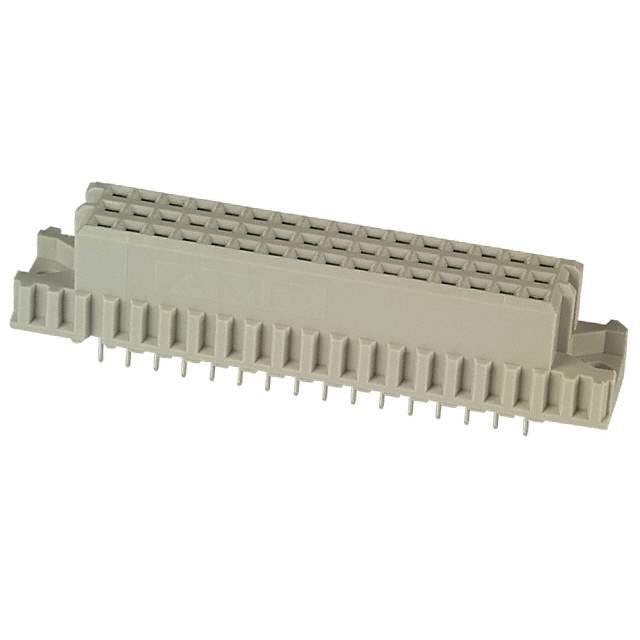

535071-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Level, Class 2
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polyester, Glass Filled
Base Product Number 535071
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-535071-4,-535071-4-SI,5350714,535071-4-ND,A29023,-2-42935-1881-SI,-2-42935-1881-SI-ND
Standard Package 30
Win Source Part Number 1029478-535071-4
Ultra Librarian 3D Model Ultra Librarian 535071-4 CAD Model

Description

The TE Connectivity Eurocard backplane connector is a female socket receptacle with a pitch of 0.100" (2.54mm) and 48 positions loaded.

  • Rows: three
  • Termination: solder
  • Contact Finish: gold with a thickness of 30.0µin (0.76µm)
  • Insulation Material: polyester, glass-filled
  • Flammability Rating: UL94 V-0
  • Mounting: through-hole mounting
  • Temperature Range: -55°C ~ 125°C
  • ECCN: EAR99
  • RoHS: non-compliant
